Quirks & Compatibility

Configuration → Device

57 Channel Mode

57ch mode

All M.1k2 send out a 57 channel signal on a port if they receive a 57 channel signal on the same port by default.

Note: Black series only. For any port the 57 channel mode can be activated manually and the automatic 57 channel switching can be turned off.

Subcode Transparency

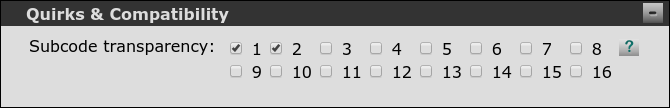

Subcode transparency

In normal operation, the M.1k2 overwrites the AES3 subcode. This switch allows to disable this feature for selected ports. If subcode transparency is enabled, the subcode is passed through unaltered.

Note: Black series only.
