GPO configuration

Configuration → Device

Electrical specification

You can find the technical details about the four GPO ports in the front panel section.


For each of the four GPOs, you have a row with the current status and three configuration options:

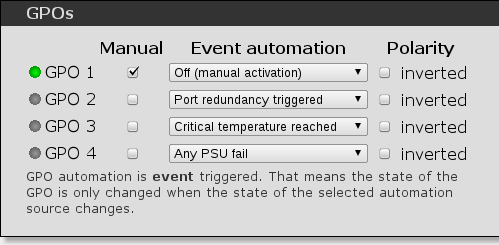

GPO settings
ManualWith this checkbox you can switch the GPO manually.
Note: If you have an automation configured for that GPO, and the automation source triggers an event, the GPO will be switched, thus overriding your manual setting.
Event automationChose an event from the list which will then trigger the GPO.
The switching is event triggered, so only if the state of the event source changes, the GPO's level will be updated. Until then it keeps the current value.
PolarityNormally, the GPO will be turned on if the event's trigger source is active. With the polarity switch you can invert the GPO switch.
