Livelog

Misc → Livelog

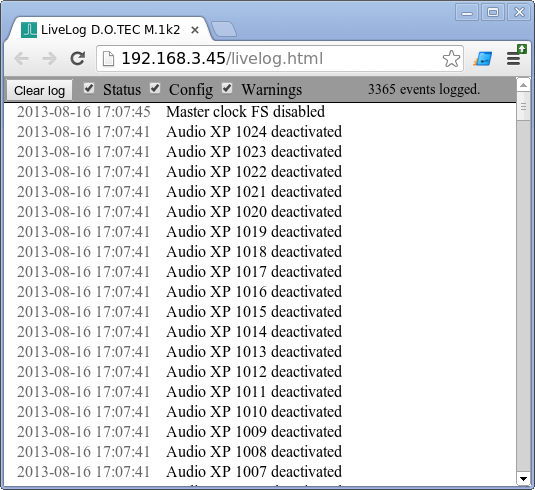

The Livelog opens a new window and displays events independently from the main window.

Event types

• Status entries are generated if a monitored entity changes its value. Those entities are for example the device's temperature, the sync state of a port or frequency changes of the word clock. Status entries are displayed with a yellow background.
• Configuration entries include everything that involves interaction with a user or a controlling program. They are displayed with a white background.
• Warnings are status or configuration entries that lead to an errornous state. They are displayed with a red background.

Filtering

Events can be filtered by checking and unchecking the corresponding checkboxes in the header.
