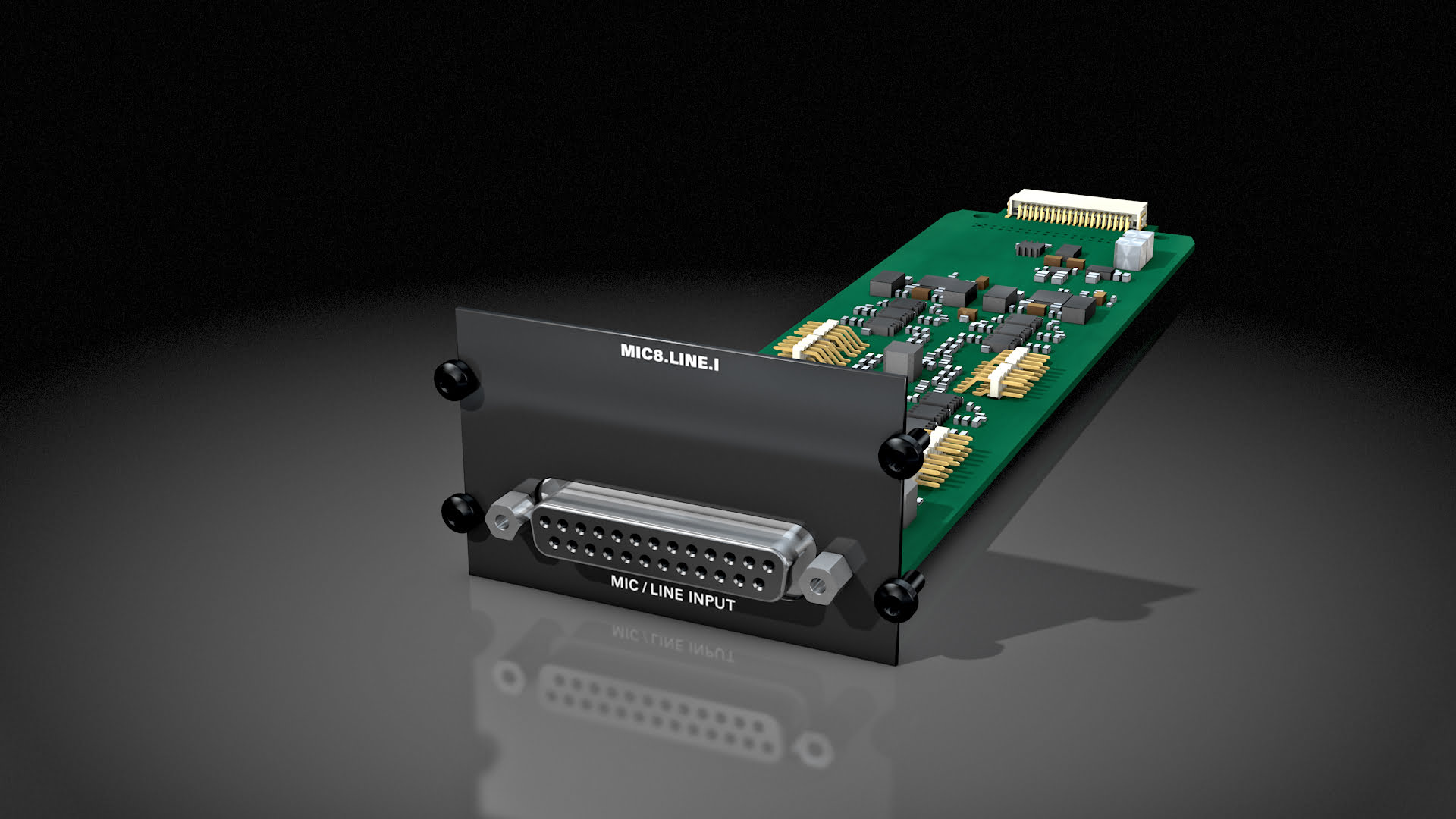

MIC8.LINE.I is a converter module for the PRODIGY Series.

Eight analog audio input channels are interfaced via a DSUB-25 connector.
The inputs are balanced and cover signal ranges from mic to line level.

The MIC8.LINE.I applies perfect for live sound or installation scenarios where usual high-quality is required.
Der MIC8.HD.I suits best for superior quality recordings and broadcasting.

  • 8 channels mic input
  • PAD -9 dB, phantom power (+48 V, switchable)
  • Input sensitivity: -55 dBu to +24 dBu EIN: -118 dBu ,
  • THD @ -1 dBFS: -113 dB
  • SNR: -115 dBFS (20 Hz - 20 kHz) / -118 dB(A) @ 0dB Gain
  • Frequency response: -0.5 dB (10 Hz to FS/2)
  • 1 x DSUB-25 connector (input)*, according to AES59

* suitable cabling to connect with BREAKOUT is available from DirectOut GmbH
