Small Form-factor pluggable (SFP) ports offer to build connections via fibre-optics or copper cabling. DirectOut provides a variety of transceivers to connect devices and modules via MADI and network connections. The transceivers have passed tests to ensure best operation and compatibility.

For MADI connections:

  • optical - LC, multi-mode

  • optical - LC, single-mode

  • copper - BNC, 75 Ω

SFP MADI - LC, multi-mode
Connector LC Duplex
Distance 2000 m @Multi Mode Fiber
Datarate 155 MBit/s
Wavelength typical 1310 nm
TX Power min -20 dBm
TX Power max -13 dBm
RX sensitivity -31 dBm
RX max -3 dBm
Temperature (min) 0° Celsius
Temperature (max) 70° Celsius
Type of DDM/DOM internal

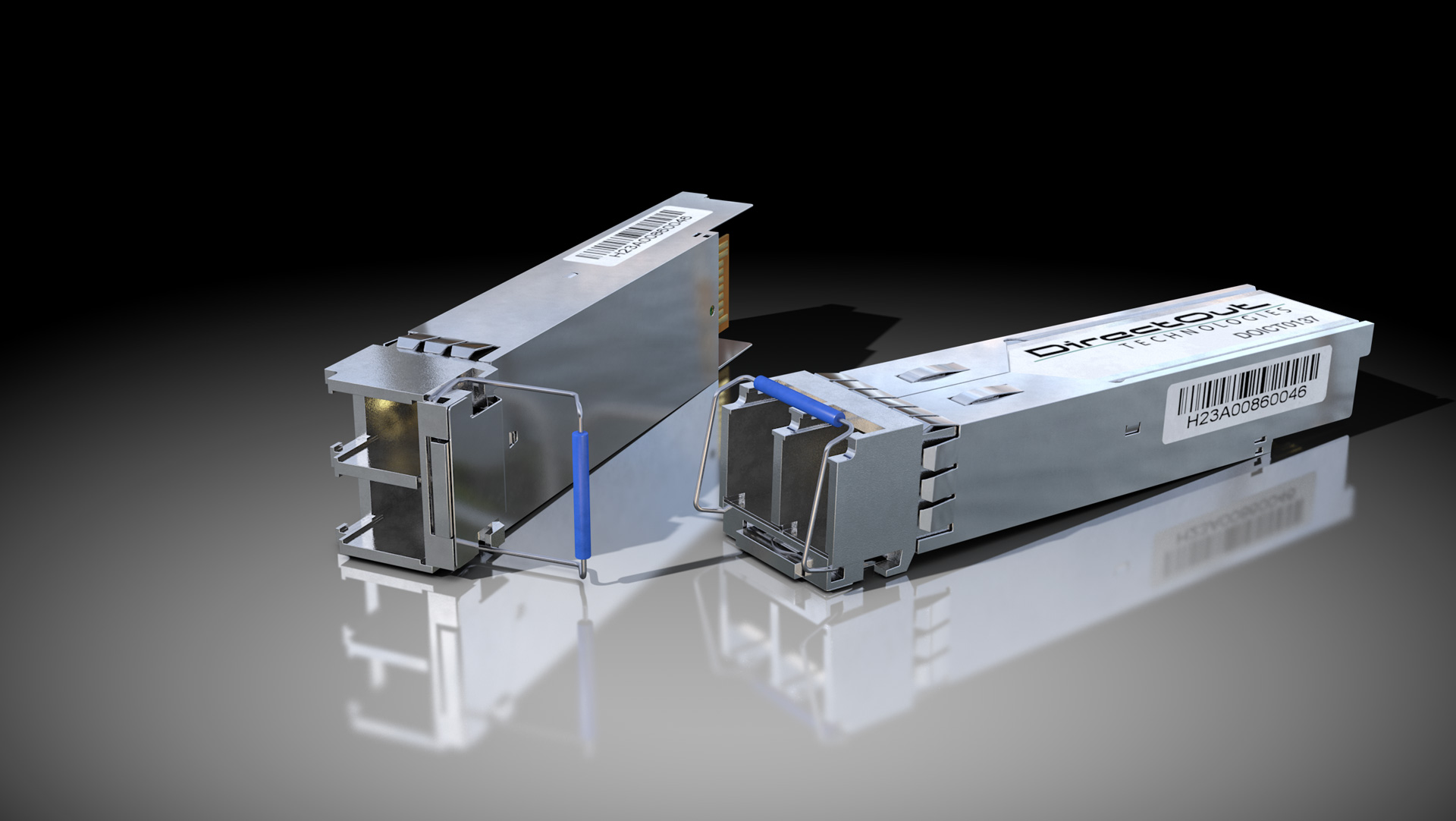

SFP MADI - LC, single-mode
Connector LC Duplex
Distance 20000 m @Single Mode Fiber
Datarate 1.25 Gbit/s
Wavelength typical 1310 nm
TX Power min -14 dBm
TX Power max -8 dBm
RX sensitivity -33 dBm
RX max -3 dBm
Temperature (min) 0° Celsius
Temperature (max) 70° Celsius
Type of DDM/DOM internal

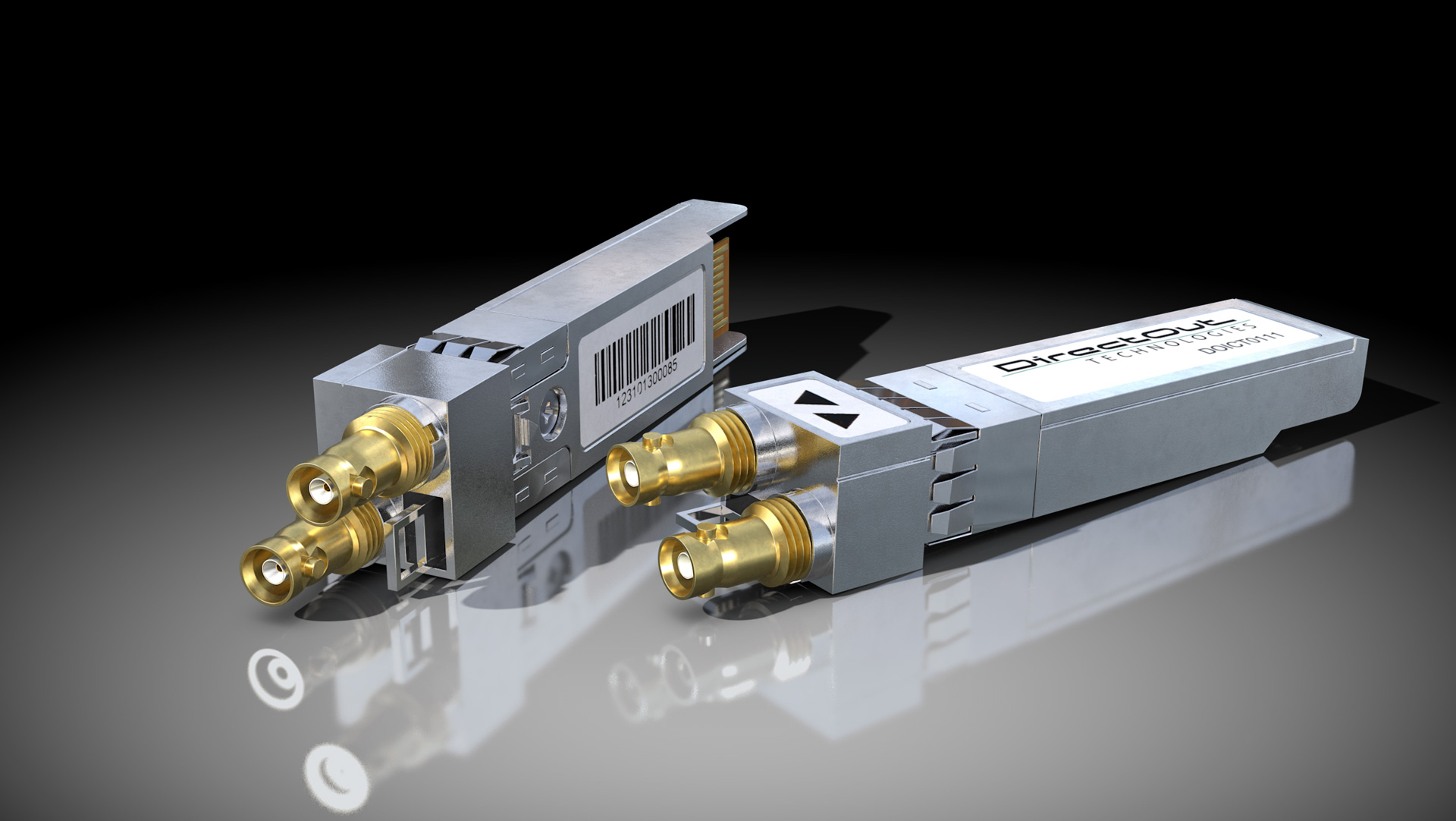

SFP MADI - BNC
Connector HD-BNC (75 Ω), adaptor HD-BNC to BNC included
Temperature (min) -40° Celsius
Temperature (max) 80° Celsius
Hot pluggable yes
AES10-2008 compliant yes
RX Equalizer Equalizes Belden 1694A (or similiar) cable up to 300m
TX Cable Driver Integrated TX Cable Driver with output impedance of 75 Ω ± 2 Ω
