SFP Network multi-mode
SFP Network single-mode
SFP Network RJ45

Small Form-factor pluggable (SFP) ports offer to build connections via fibre-optics or copper cabling. DirectOut provides a variety of transceivers to connect devices and modules via MADI and network connections. The transceivers have passed tests to ensure best operation and compatibility.

For audio or management network connections:

  • optical - LC, multi-mode

  • optical - LC, single-mode

  • copper - RJ45

SFP Network - LC, multi-mode
Connector LC Duplex
Distance 550 m @50/125 µm
275 m @62.5/125 µm
Datarate 1.25 GBit/s
Wavelength typical 850 nm
TX Power min -9.5 dBm
TX Power max -3 dBm
RX sensitivity < -17 dBm
RX max -3 dBm
Temperature (min) 0° Celsius
Temperature (max) 70° Celsius
DDM/DOM supported

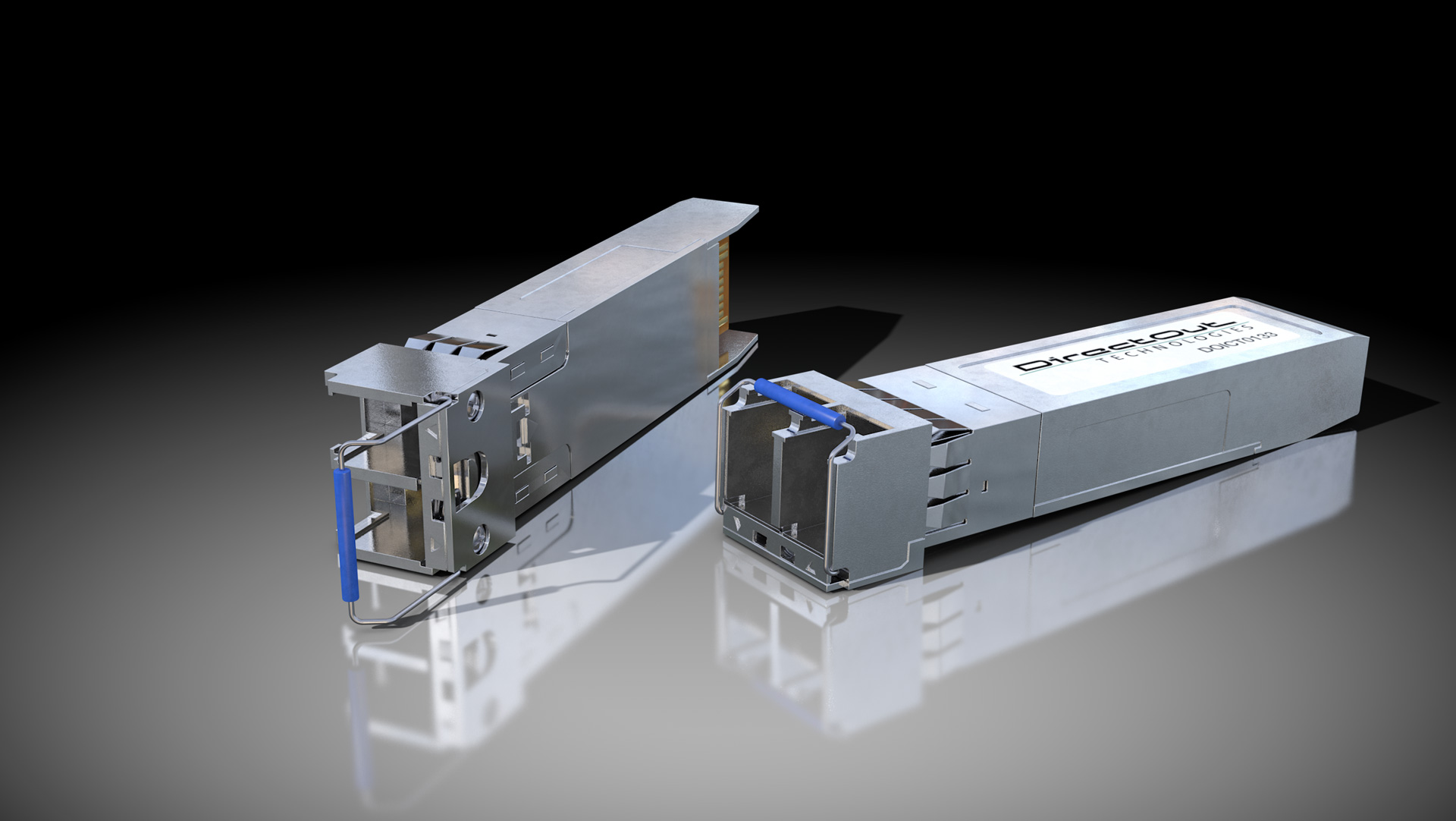

SFP Network - LC, single-mode
Connector LC Duplex
Distance 10000 m @Single Mode Fiber
Datarate 1.25 Gbit/s
Wavelength typical 1310 nm
TX Power min -9.5 dBm
TX Power max -3 dBm
RX sensitivity < -20 dBm
RX max -3 dBm
Temperature (min) 0° Celsius
Temperature (max) 70° Celsius
DDM/DOM supported

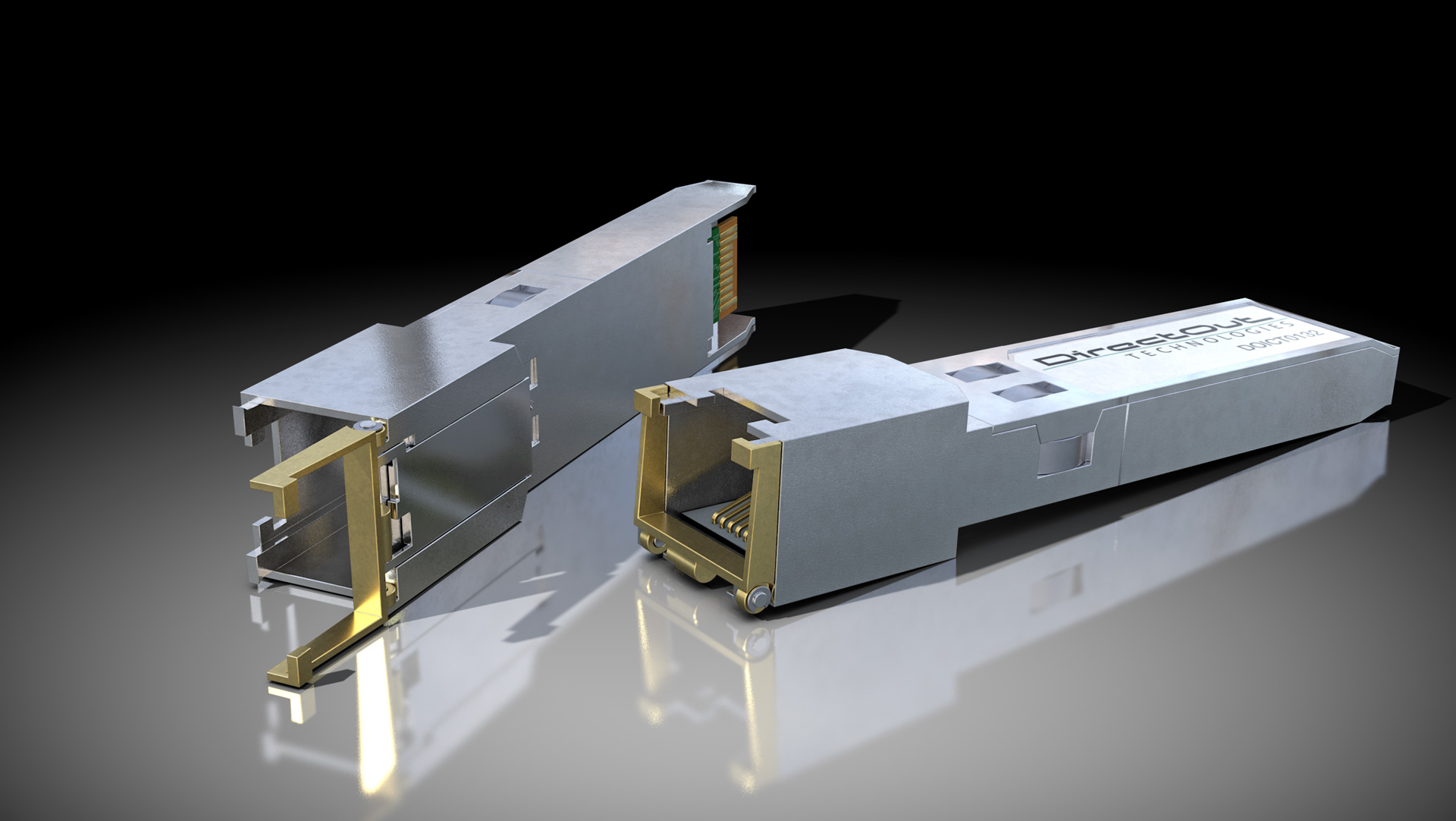

SFP Network - RJ45
Connector RJ45
Distance 100 m via CATe cable
Datarate 12 Mbit/s to 1.25 Gbit/s
Supported protocols 10/100/1000Base-T
Temperature (min) 0° Celsius
Temperature (max) 70° Celsius
DDM not implemented
