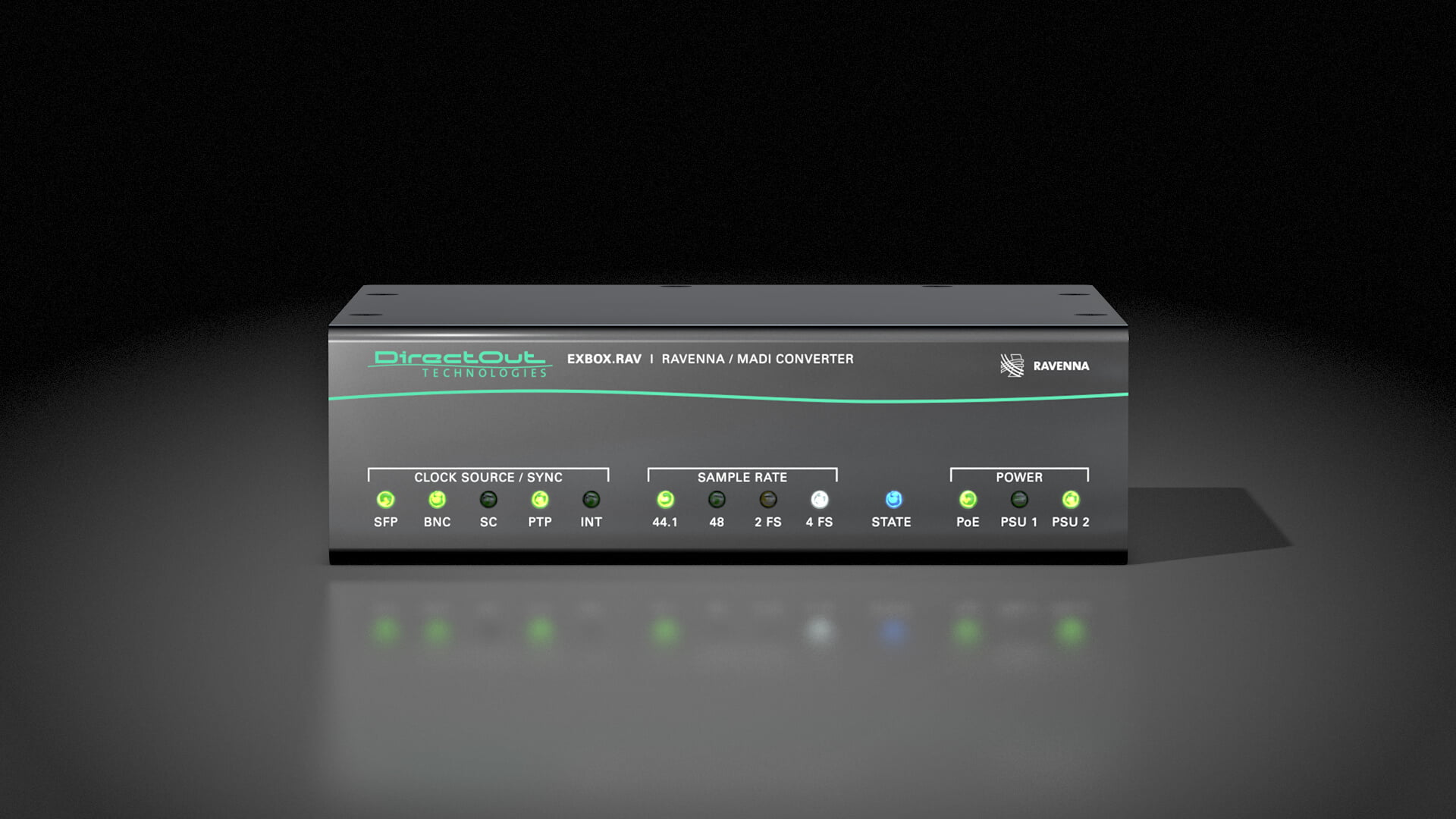

EXBOX.RAV is an Audio-over-IP to MADI converter running on DirectOut’s well-proven RAVENNA (AES67/ST 2110-30 / -31) implementation. It supports NMOS for stream and device discovery and connection management.

Four gigabit ports with an internal switch and PoE, plus three MADI ports in BNC, SC and SFP format offer bidirectional conversion and routing of 64 audio channels, with built-in SRC functions (FastSRC™) and automatic redundancy switching (EARS™).

The handy size of the popular EXBOX series (1/3 of 19’’), combined with the rock-solid housing and redundant power supplies, makes EXBOX.RAV a compact and affordable solution to migrate baseband audio to IP.

As a successful participant of the JT-NM Tested program EXBOX.RAV is listed in the JT-NM Tested Catalog as a device aligning with the SMPTE 2110 standards.

Audio Streaming

Up to 32 streams with a total number of 64 audio channels are supported. The device complies with AES67, ST 2110-30 / -31, and supports all ST 2022-7 classes.

All-Round Functionality

EXBOX.RAV offers highest flexibility as it provides three MADI ports of different interface types:

  • optical SC (single-mode or multi-mode)
  • coaxial (BNC)
  • SFP

The Small Form Factor Pluggable cage can be fitted with any SFP module suitable for the particular application.

FastSRC™

The FastSRC™ is a low latency sample rate converter, switchable for the audio network I/O, and ensures seamless exchange between MADI and IP when both sources are not synchronised.

EARS™

Enhanced Automatic Redundancy Switching™ is a system to prevent interruption of the output signal. It uses either the proven BLDS™ technology or pilot tone triggering. A logic monitors the condition of the trigger signal on the audio network input. In case of a failure it switches automatically to the defined backup input (audio network or MADI).

Built-in Switch

Two independent NICs can be connected to four network ports of the built-in switch, supporting redundant audio streaming as per ST 2022-7.

Remote control

Device functions of EXBOX.RAV, such as the channel based routing matrix, FastSRC™ or EARS™ are accessible via globcon and a browser UI. NMOS standards IS-04 and IS-05 are supported for stream and device discovery and connection management.

Safe operation

The device can be powered by up to two external power-supplies as well as PoE (Power over Ethernet).

Rack-Ready

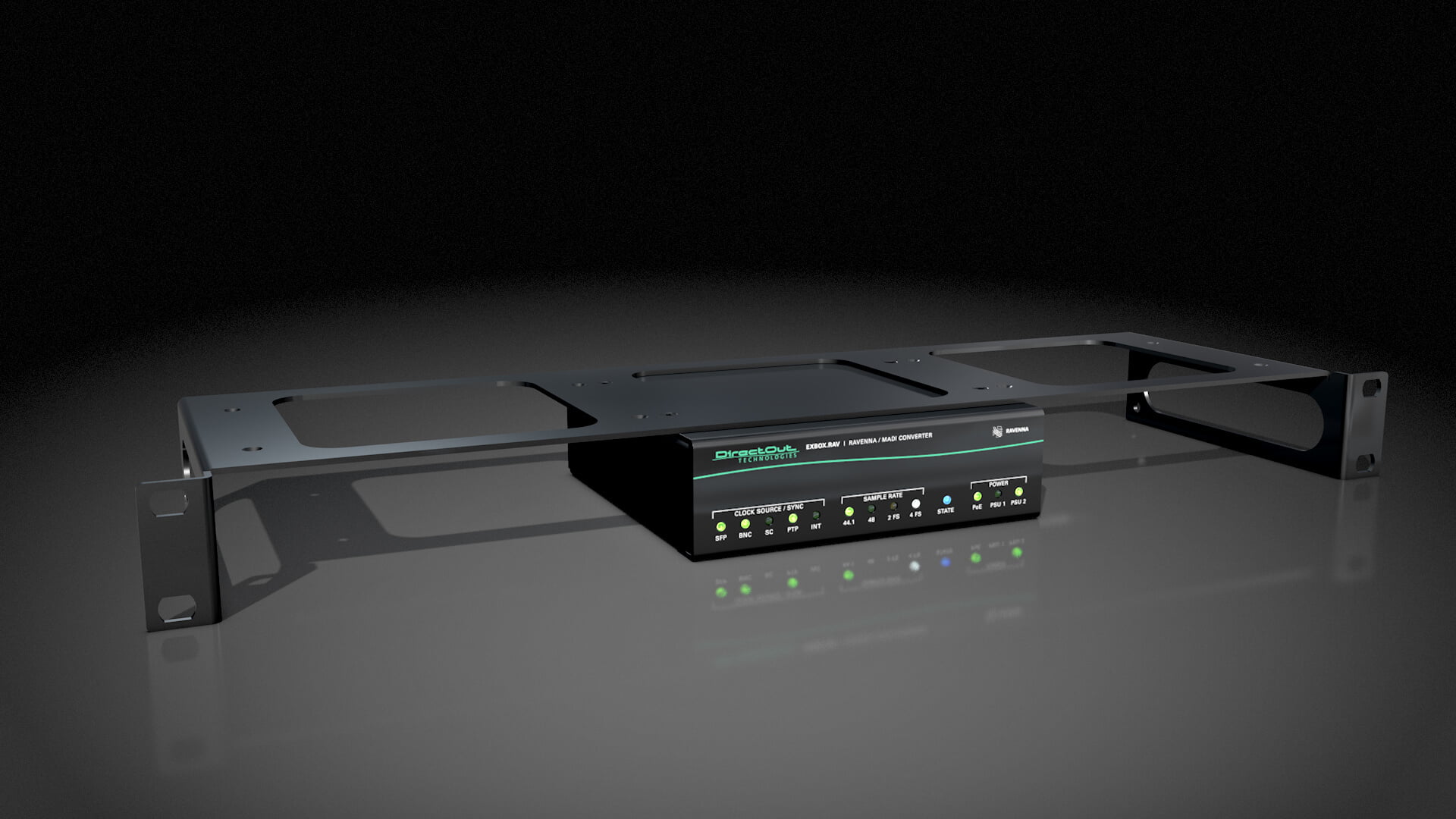

Each EXBOX can be mounted into a standard 19’’-rack by using the optional kit BOXMOUNT.XL. Up to three devices may fit side-by-side within 1 RU.

Knowledge source about RAVENNA

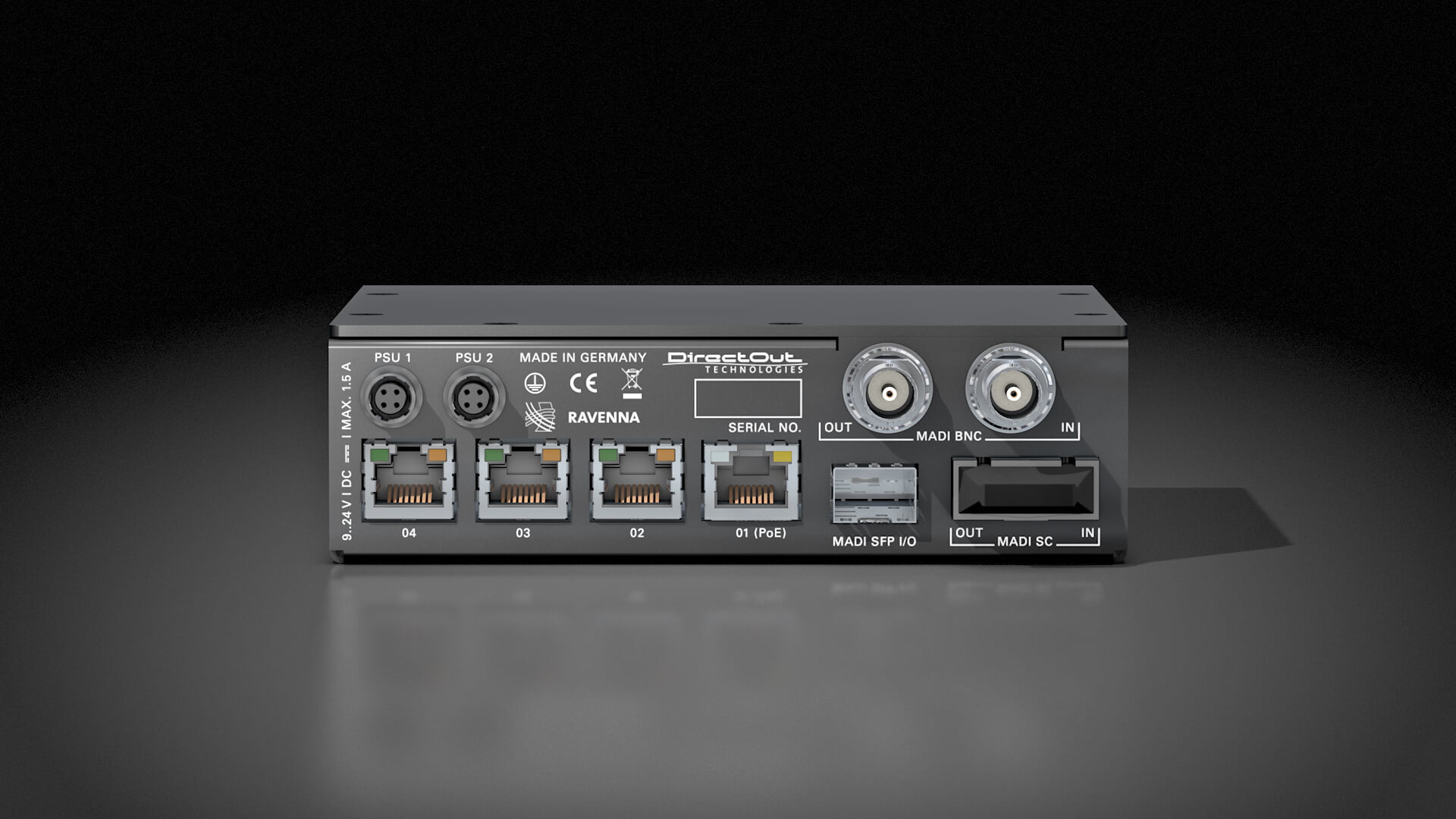

Interfaces
MADI ports (I/O):1 x coaxial BNC, 75Ω
1 x optical SC-Socket multi-mode
1 x SFP (empty cage without transceiver)*
Network:3 x RJ45 Socket (1 Gbit/s)
1 x RJ45 Socket (1 Gbit/s, PoE)



* compatible with SFP MADI Transceiver LWLAB optical LC Multi Mode / Single Mode and SFP Transceiver HD-BNC coax, available from DirectOut GmbH



Digital
Sample rates:44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%)
MADI formats:48k / 96k Frame, 56 / 64 channel, S/MUX



Network Audio
Network-Layer:3
Number of streams:32
Number of channels (I/O):64 (@1 FS), 32 (@2 FS), 16 (@4 FS)
Standard:RAVENNA, AES67, SMPTE ST 2110-30 / -31, ST 2022-7



Sync
Network:IEEE 1588 v2



Signal Processing
Sample Rate Conversion:FastSRC™ @ RAVENNA I/O



Communication
Remote Software:globcon, integrated Webserver, NMOS IS-04 / IS-05
Remote Methods:Network



Global
Power Supply:external, 2 x Hirose (9 - 24V)*, 1 x PoE (IEEE 802.3af)
Dimensions:Width 140 mm
Height 42 mm
Depth 140 mm
Weight:about 1 kg



Accessory
SFP modules (LC single-mode or multi-mode)
BOXMOUNT.XL for 19'' rack mount



Device variants
Single-mode:MADI port: SC-Socket single-mode
Dual PSUoptional available



Notes
* 1 x power supply included





About FastSRC
DirectOut's FastSRC™ is a low latency sample rate converter for when two digital interfaces of a device must work in different clock domains. FastSRC™ combines good sound quality with very low latency of less than 0.15 msecs and is invaluable in live sound applications and a "life-saver" in critical situations. High-end sample rate conversion requires noticeable processing time, so for the very best audio quality we recommend DirectOut's dedicated SRC products such as the RAV.SRC.IO, DANTE.SRC.IO or MADI.SRC.
