PRODIGY.MX is a multiformat audio matrix with a capacity of 1664 x 1664 audio channels.

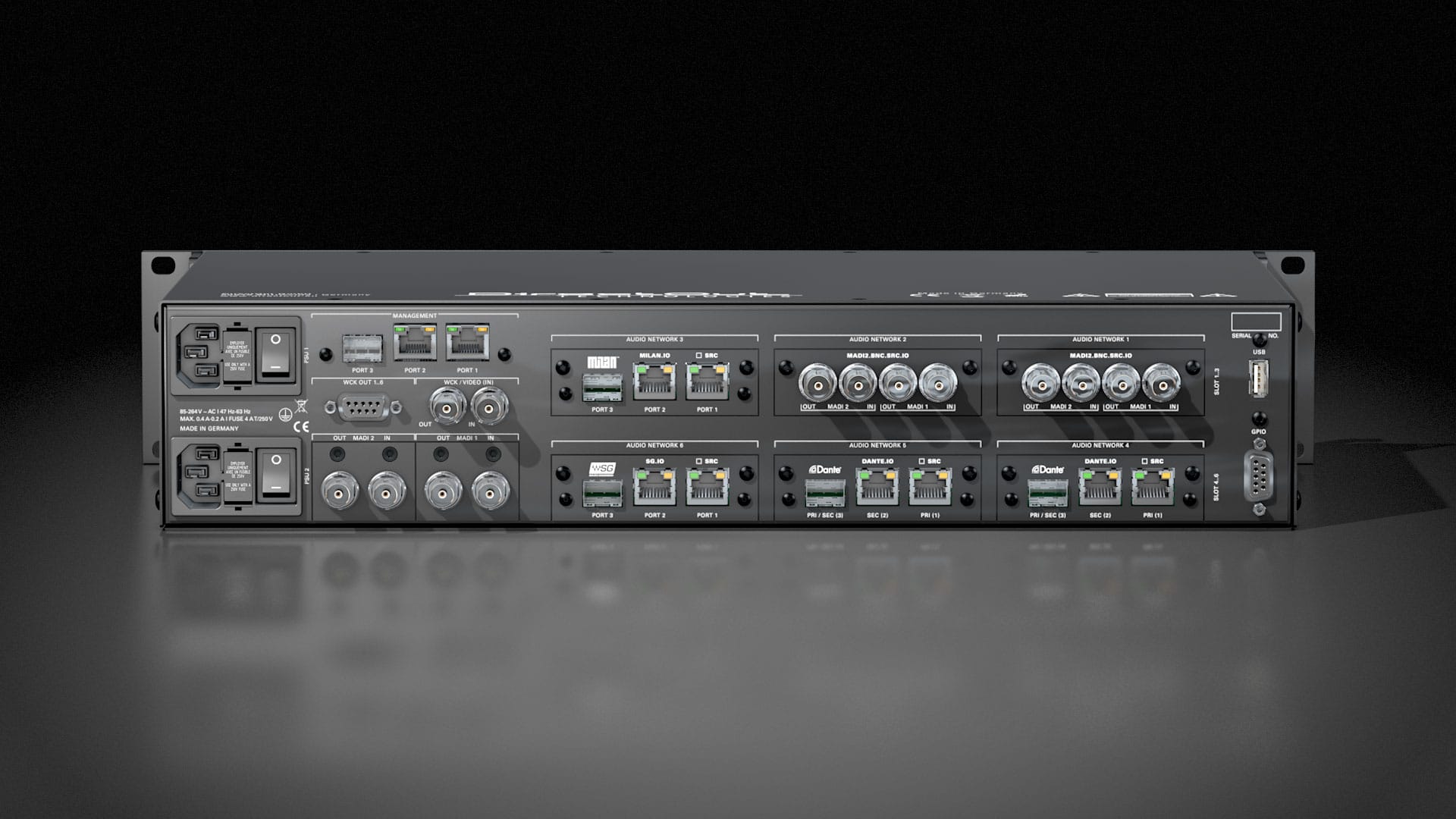

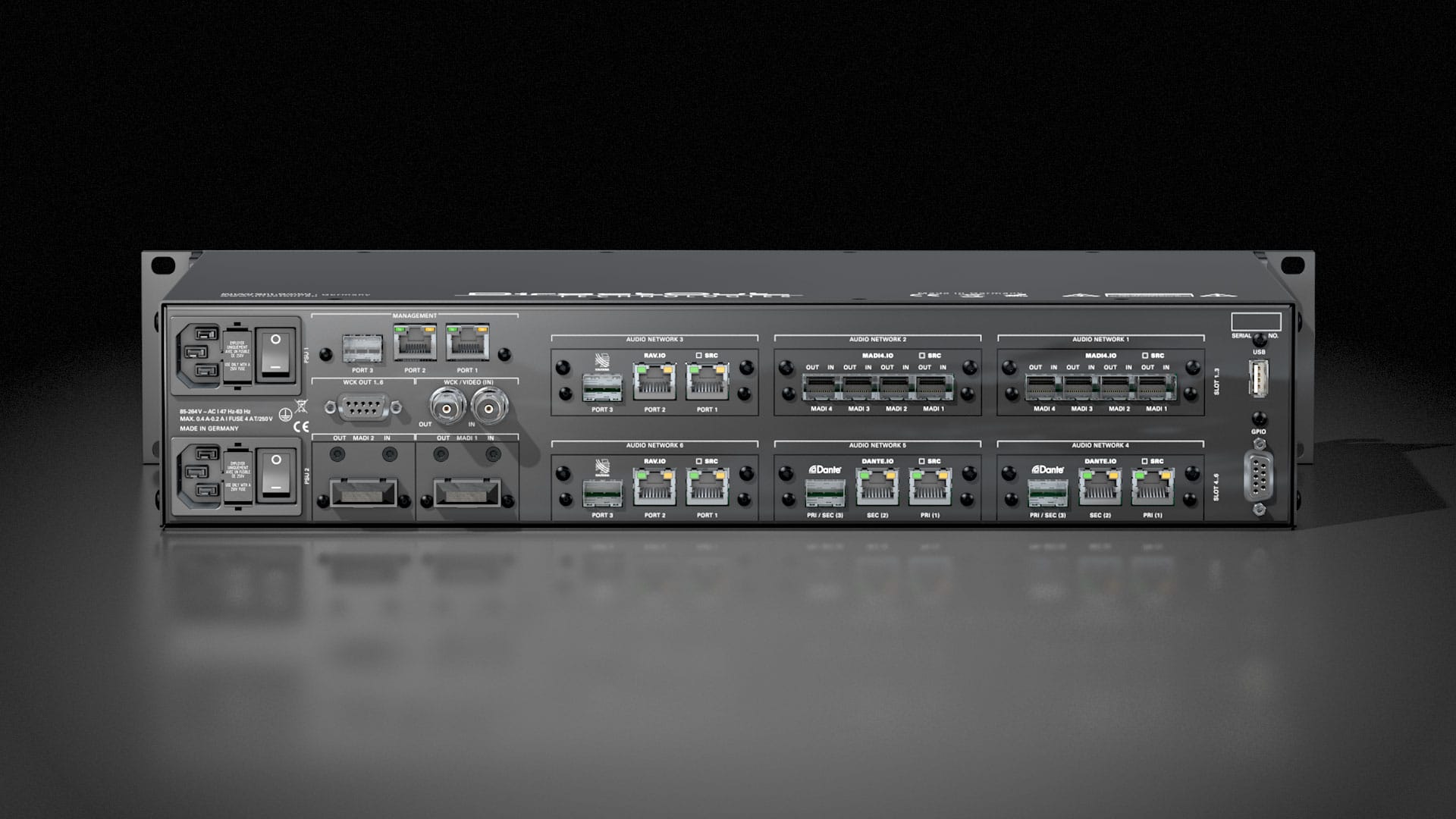

The mainframe hosts up to six audio network modules interfacing with the whole range of audio protocols offered by DirectOut. Two additional MADI slots connect with selectable sockets.

The hardware is modular and the available licenses are granular - offering to make the best choice to meet your requirements.

Multi Format

  • RAVENNA / AES67
  • Dante
  • SoundGrid
  • AVB / MILAN
  • MADI

Seamless connecting
Bidirectional sample rate conversion (HD SRC) connects across clock boundaries.

Control is key
Globcon control manages all DirectOut devices via network - either on Mac or PC.

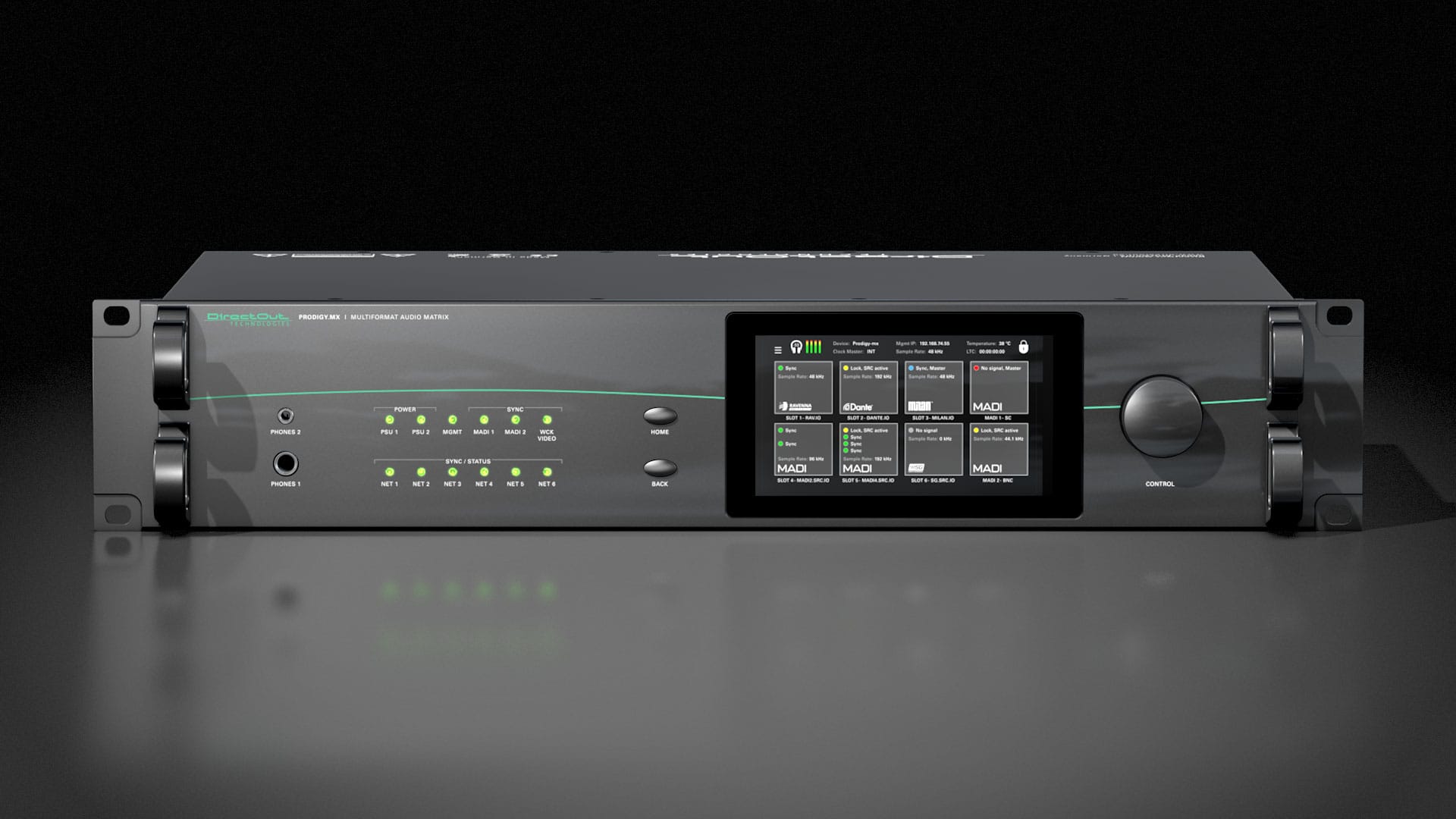

Local display and operation on a touch display facilitates the overview and grants basic control.
Third-party control protocols (Ember+, OSC, SNMP, JSON-API) are available as options.

DSP
Signal processing offers gain control of all inputs and outputs and channel groups for comfortable fading.
Additional DSP functions are planned for future updates.

MADI unlocked

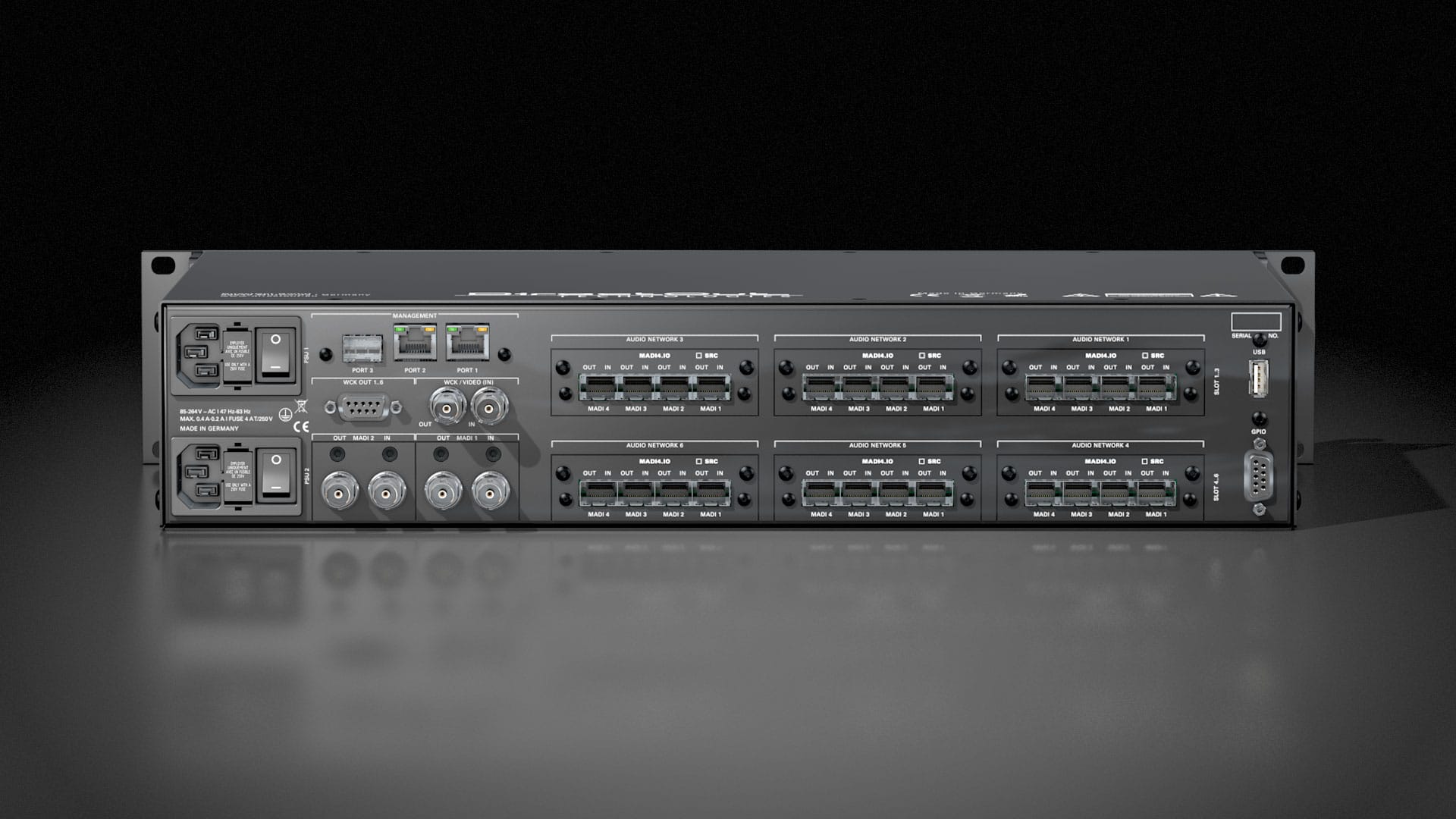

New MADI modules for the audio network slots with two or four MADI ports add extra capacity to the single MADI slots.

MADI Modules
BNC.IO 64 ch MADI, 1x coaxial BNC input, 1x coaxial BNC output, 75 Ω
SC.IO 64 ch MADI, 1x SC-Socket duplex multi-mode (single mode on request)
SFP.IO 64 ch MADI, 1x SFP cage (matching SFP modules available from DirectOut)
with Sample Rate Converter
MADI2.SRC.IO 128 ch MADI, 2x SFP cage (matching SFP modules available from DirectOut)
MADI2.BNC.SRC.IO 128 ch MADI, 2x coaxial BNC input, 2x coaxial BNC output, 75 Ω
MADI4.IO 256 ch MADI, 4x SFP cage (matching SFP modules available from DirectOut)
MADI4.SRC.IO 256 ch MADI, 4x SFP cage (matching SFP modules available from DirectOut)
with Sample Rate Converter



Network Modules
RAV.IO Audio Network RAVENNA / AES67 (2x RJ45, 1x SFP)
RAV.SRC.IO Audio Network RAVENNA / AES67 (2x RJ45, 1x SFP)
with Sample Rate Converter
DANTE.IO Audio Network DANTE (2x RJ45, 1x SFP)
DANTE.SRC.IO Audio Network DANTE (2x RJ45, 1x SFP)
with Sample Rate Converter
SG.IO Audio Network SoundGrid (2x RJ45, 1x SFP)
SG.SRC.IO Audio Network SoundGrid (2x RJ45, 1x SFP)
with Sample Rate Converter
MILAN.IO Audio Network AVB/MILAN (2x RJ45, 1x SFP)
MILAN.SRC.IO Audio Network AVB/MILAN (2x RJ45, 1x SFP)
with Sample Rate Converter



Digital
Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%)
MADI formats: 48k / 96k Frame, 56 / 64 channel, S/MUX



Additional Interfaces
Headphone Output #1: 1 x 6.3 mm TRS jack, mono/stereo
Output level: max. +18 dBu
SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A)
THD+N @ 0 dBFS: -105 dB @ 600 Ω
Headphone Output #2: 1 x 3.5 mm TRS jack, mono/stereo
Output level: max. +12 dBu
SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A)
THD+N @ 0 dBFS: -105 dB @ 600 Ω
Word Clock I/O: 2 x coaxial BNC (75 Ω termination switchable), AES11 (DARS also supported), WCK switchable to Video Sync
GPIO 2 x GPI (MOSFET switch)
2 x GPO (MOSFET switch)
USB 1 x USB 2.0 for legacy control of ANDIAMO devices



Signal DSP
DSP Gain/Mute, EQ, Dynamics, Delay, Summing Busses, Matrix Mixer
SRC Synchronous / asynchronous sample rate conversion



Communication
Remote Software: globcon software control
integrated web server with UI (HTML, JavaScript)
Control Protocols: JSON API, SNMP*, OSC, Ember+
Remote Network: 2 x RJ45 Gigabit Ethernet, 1 x SFP



Global
Power supply: 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phaseredundant
Power Consumption: 20 to 110 W, module dependent
Display: 5.0” Backlight LED LCD
IPS Transmissive
Resolution: 480 x 854 px
Local Control: 1 x Encoder knob with push functionality
2 x Push-Buttons
Dimensions: Width 19'' (483 mm)
Height 2 RU (89 mm)
Depth 10'' (254 mm)
Weight: about 10 kg



No liability for misprints and technical changes assumed.
