PRODIGY.MX is a multiformat audio matrix with a capacity of 1664 x 1664 audio channels.

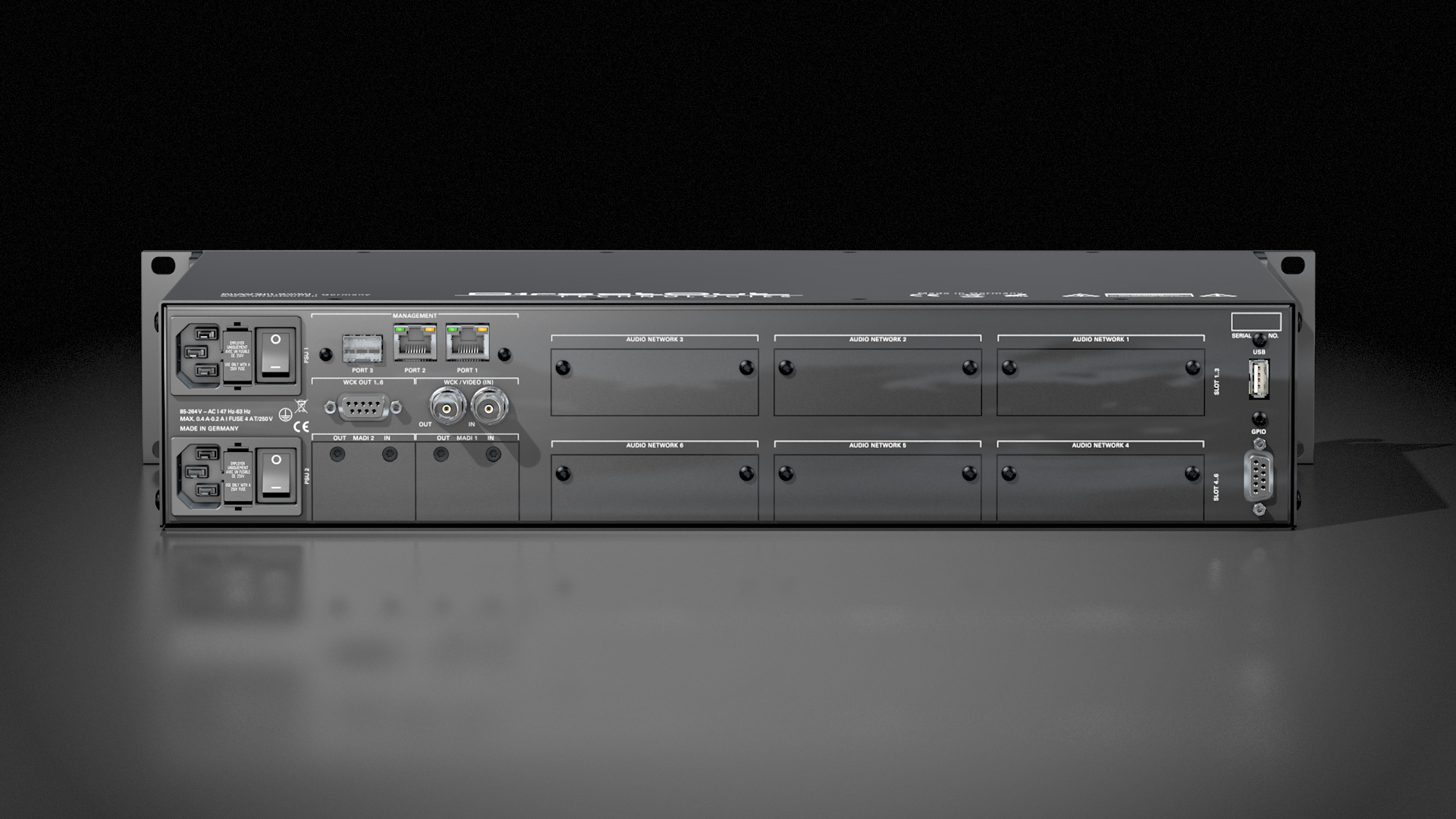

The mainframe hosts up to six audio network modules interfacing with the whole range of audio protocols offered by DirectOut. Two additional MADI slots connect with selectable sockets.
The hardware is modular and the available licenses are granular - offering to make the best choice to meet your requirements.
Multi Format
- RAVENNA / AES67
- Dante
- SoundGrid
- AVB / MILAN
- MADI
Seamless connecting
Bidirectional sample rate conversion (HD SRC) connects across clock boundaries.
Control is key
Globcon control manages all DirectOut devices via network - either on Mac or PC.
Local display and operation on a touch display facilitates the overview and grants basic control.
Third-party control protocols (Ember+, OSC, SNMP, JSON-API, Lawo HOME) are available as options.
DSP
Signal processing offers gain control of all inputs and outputs and channel groups for comfortable fading.
64 Flex Channels provide signal processing with excellent internal plugins:
- IIR filter with six instances of selectable filter types
- Dynamics with four different configurations
- Delay of up to 65534 samples (= 1365 milliseconds @ 48 kHz)
64 x 64 Matrix Mixer to mix 64 freely assignable sources to 64 busses.
64 Summing Busses, each of which can sum any number of signal sources to a single feed.
AutoMix for automated mixing of different audio signals in up to 16 AutoMix groups to increase intelligibility or to reduce noise
Redundancy
64 Input Managers each managing the signal automatic switch-over between up to six physical inputs.
EARS™ (Enhanced Automatic Redundancy Switching) for automatic fail-over switching of an entire input port to a backup port.
MADI unlocked
New MADI modules for the audio network slots with two or four MADI ports add extra capacity to the single MADI slots.
