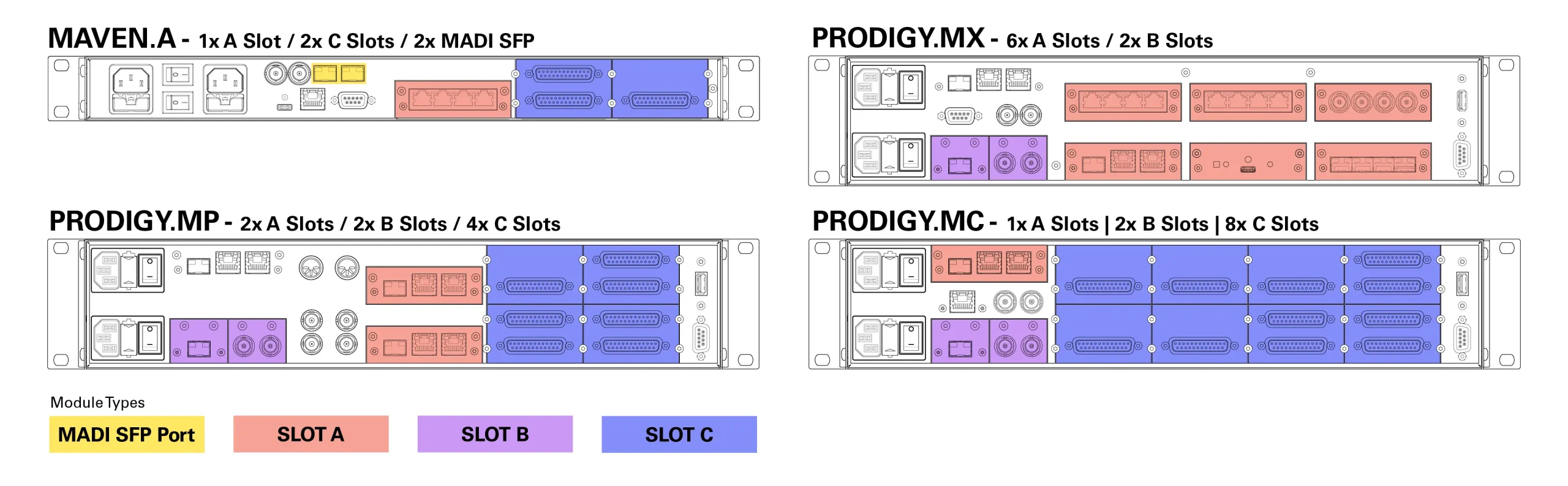

Our Smart Audio Platforms use a customizable mainframe, with dedicated slots that can be populated with a variety of IO modules, and a scalable license management to expand the feature set.
Mainframes
MAVEN and PRODIGY Series

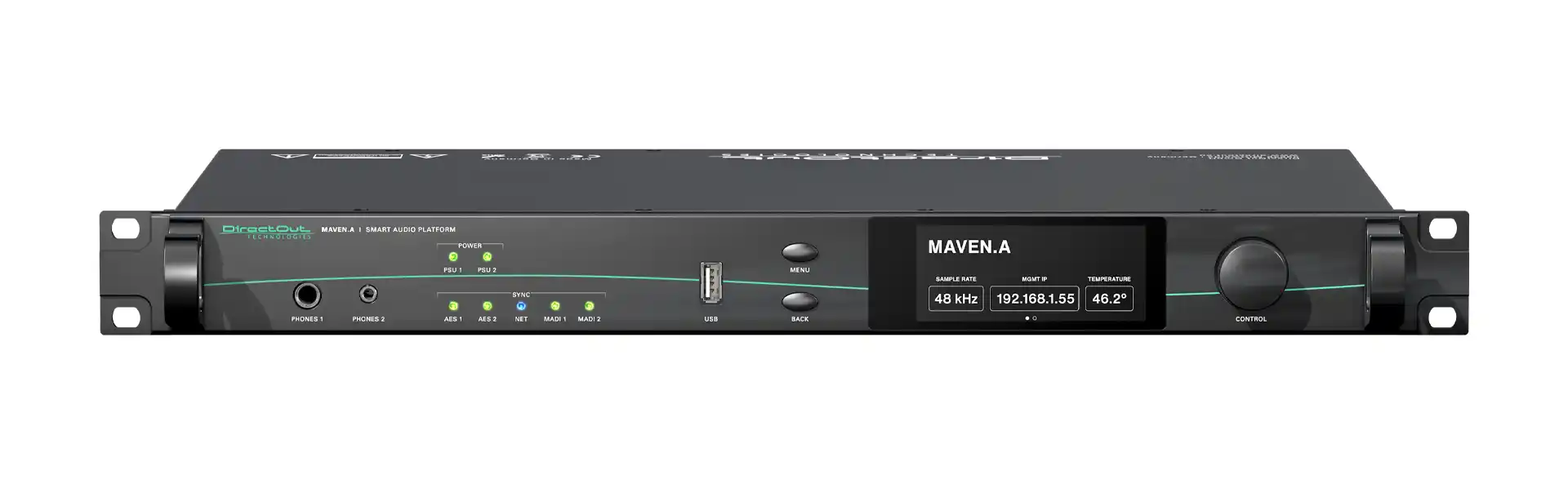

MAVEN.A

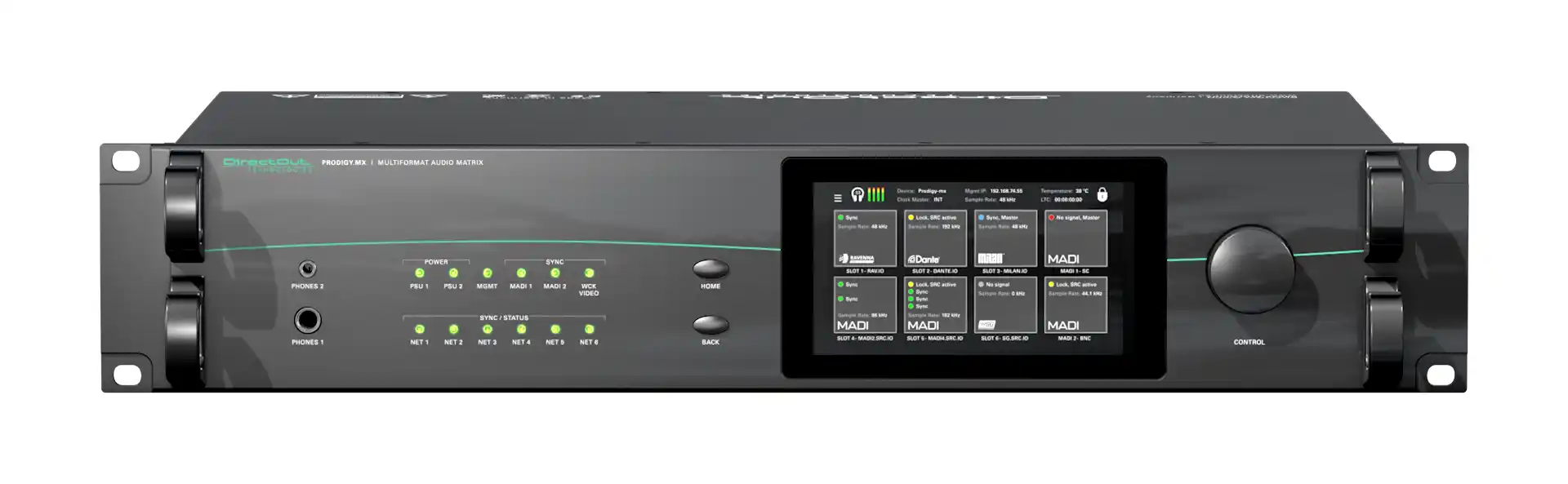

PRODIGY.MX
PRODIGY.MP

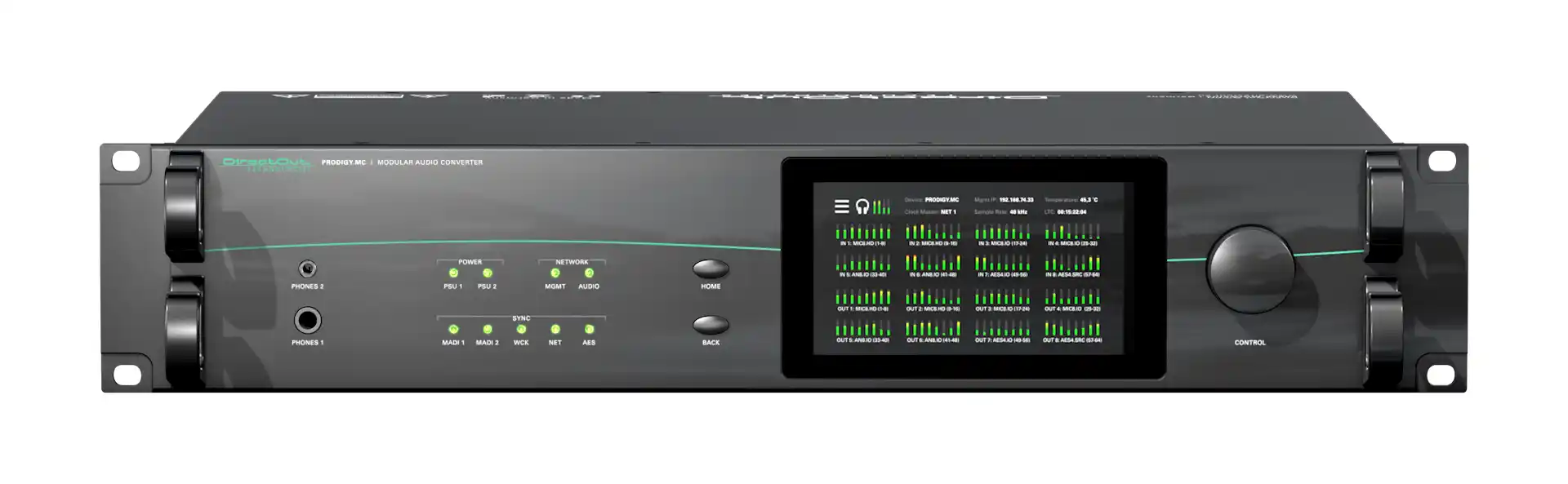

PRODIGY.MC
Dual Network Audio Modules
DANTE.DANTE.SRC.IO
DANTE / AES67
32 Streams (x2)
64 Channels (x2)
2x RJ45 Gigabit Ethernet (x2)
HD SRC
DANTE.MILAN.SRC.IO
DANTE / AES67
MILAN / AVB
32 Streams / 64 Channels (Dante)
64 Channels (Milan)
2x RJ45 Gigabit Ethernet (x2)
HD SRC
DANTE.RAV.SRC.IO
DANTE / AES67
RAVENNA / AES67 / ST-2110
32 Streams / 64 Channels (Dante)
32 Streams / 64 Channels (Ravenna)
2x RJ45 Gigabit Ethernet (x2)
HD SRC
DANTE.SG.SRC.IO
DANTE / AES67
SOUNDGRID
32 Streams / 64 Channels (Dante)
64 Channels (SoundGrid)
2x RJ45 Gigabit Ethernet (x2)
HD SRC
RAV.MILAN.SRC.IO
RAVENNA / AES67 / ST-2110
MILAN / AVB
32 Streams / 64 Channels (Ravenna)
64 Channels (Milan)
2x RJ45 Gigabit Ethernet (x2)
HD SRC
MILAN.MILAN.SRC.IO
MILAN / AVB
64 Channels (x2)
2x RJ45 Gigabit Ethernet (x2)
HD SRC
RAV.RAV.SRC.IO
RAVENNA / AES67 / ST-2110
32 Streams / 64 Channels (x2)
2x RJ45 Gigabit Ethernet (x2)
HD SRC
RAV.SG.SRC.IO
RAVENNA / AES67 /ST-2110
SOUNDGRID
32 Streams / 64 Channels (Ravenna)
64 Channels (SoundGrid)
2x RJ45 Gigabit Ethernet (x2)
HD SRC
MILAN.SG.SRC.IO
MILAN / AVB
SOUNDGRID
64 Channels (Milan)
64 Channels (SoundGrid)
2x RJ45 Gigabit Ethernet (x2)
HD SRC
SG.SG.SRC.IO
SOUNDGRID
64 Channels (x2)
2x RJ45 Gigabit Ethernet (x2)
HD SRC
Single Network Audio Modules
DANTE.IO
DANTE / AES67
32 Streams
64 Channels
2x RJ45 Gigabit Ethernet
1x SFP
DANTE.SRC.IO
DANTE / AES67
32 Streams
64 Channels
2x RJ45 Gigabit Ethernet
1x SFP
HD SRC
MILAN.IO
MILAN / AVB
128 Channels
2x RJ45 Gigabit Ethernet
1x SFP
MILAN.SRC.IO
MILAN / AVB
128 Channels
2x RJ45 Gigabit Ethernet
1x SFP
HD SRC
RAV.IO
RAVENNA / AES67 / ST2110
32 Streams
128 Channels
2x RJ45 Gigabit Ethernet
1x SFP
256 Channels Extension available via License*
RAV.SRC.IO
RAVENNA / AES67 / ST2110
32 Streams
128 Channels
2x RJ45 Gigabit Ethernet
1x SFP
HD SRC
256 Channels Extension available via License*
SG.IO
SOUNDGRID
128 Channels
2x RJ45 Gigabit Ethernet
1x SFP
SG.SRC.IO
SOUNDGRID
128 Channels
2x RJ45 Gigabit Ethernet
1x SFP
*256 Channels modules supported by PRODIGY.MX and MAVEN.A only
USB
USB.IO
USB-C
128 Channels (USB 3.0)
64 Channels (USB 2.0)
1x USB-C
RME Drivers / Class Compliant Mode
USB.MADI
USB-C / MADI (AES10)
64 Channels (USB 2.0)
1x USB-C
RME Drivers / Class Compliant Firmware
Compatible with DirectOut's MADI SFP sockets
Multi-Port Madi
MADI2.BNC.SRC.IO
MADI (AES10)
2x MADI Ports
128 Channels
4x BNC, coaxial 75Ω
HD SRC
MADI2.SRC.IO
MADI (AES10)
2x MADI Ports
128 Channels
2x SFP Sockets
HD SRC
MADI4.IO*
MADI (AES10)
4x MADI Ports
256 Channels
4x SFP Sockets
MADI4.SRC.IO*
MADI (AES10)
4x MADI Ports
256 Channels
4x SFP Sockets
HD SRC
*256 Channels modules supported by PRODIGY.MX and MAVEN.A only
Single-Port Madi
BNC.IO
MADI (AES10)
1x MADI Port
64 Channels
2x BNC, coaxial 75Ω
SC.IO
MADI (AES10)
1x MADI Port
64 Channels
1x SC
SFP.IO
MADI (AES10)
1x MADI Port
64 Channels
1x SFP Socket
MADI SFP Transceivers

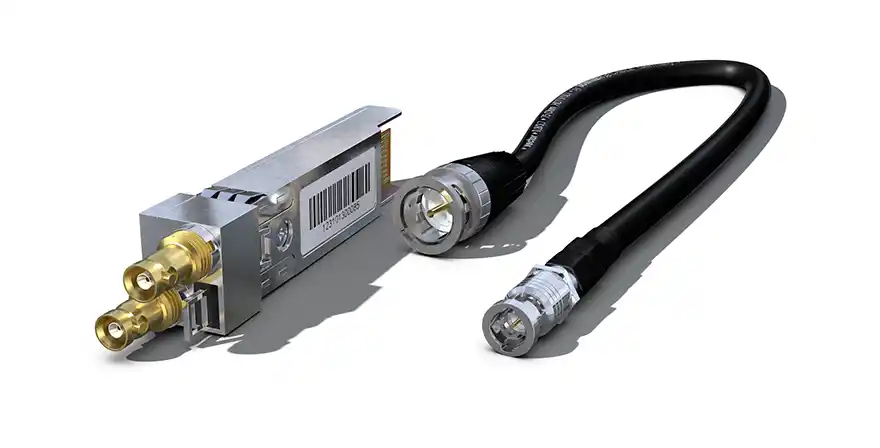

Coaxial BNC
MADI (AES10)
1x MADI Port
64 Channels
2x mini-BNC, coaxial 75Ω
2x Adapter cables
Optical Multi-Mode
MADI (AES10)
1x MADI Port
64 Channels
LC, multi-mode
Optical Single-Mode
MADI (AES10)
1x MADI Port
64 Channels
LC, single-mode
Analog
MIC8.HD.I
ANALOG / MIC
8x Mic/Line Inputs
HD Quality
1x DSUB-25 Connector
MIC8.HD.IO
ANALOG / MIC
8x Mic/Line Inputs
8x Line Outputs
HD Quality
2x DSUB-25 Connector
MIC8.LINE.I
ANALOG / MIC
8x Mic/Line Inputs
Premium Quality
1x DSUB-25 Connector
MIC8.LINE.IO
ANALOG / MIC
8x Mic/Line Inputs
8x Line Outputs
Premium Quality
2x DSUB-25 Connector
AN8.I
ANALOG / LINE
8x Line Inputs
Premium Quality
1x DSUB-25 Connector
AN8.O
ANALOG / LINE
8x Line Outputs
Premium Quality
1x DSUB-25 Connector
AN8.IO
ANALOG / LINE
8x Line Inputs
8x Line Outputs
Premium Quality
2x DSUB-25 Connector
AES3
AES4.IO
AES3
4x Inputs (8 Audio Channels)
4x Outputs (8 Audio Channels)
1x DSUB-25 Connector
AES4.SRC.IO
AES3
4x Inputs (8 Audio Channels)
4x Outputs (8 Audio Channels)
1x DSUB-25 Connector
HD SRC
A System License needs to be activated at the purchase of the device.
'Essential' includes an initial set of features, while Individual Licenses and Licenses Bundles can be added on demand at any time.
'Unlimited' includes the current full feature set and all future Individual Licenses. No upgrades to 'Unlimited' are possible after the initial activation.
!! Some features are still under development for the MAVEN platform !!
Click here for more info on INDIVIDUAL LICENSES and LICENSES BUNDLES.
Accessories

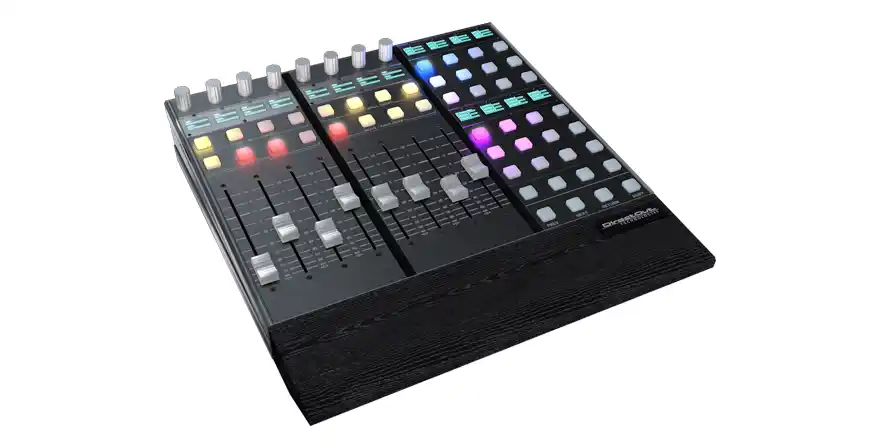

HCONTROL.8
CONTROLLER
Customizable Faders and Buttons via globcon
Connection via USB or Ethernet

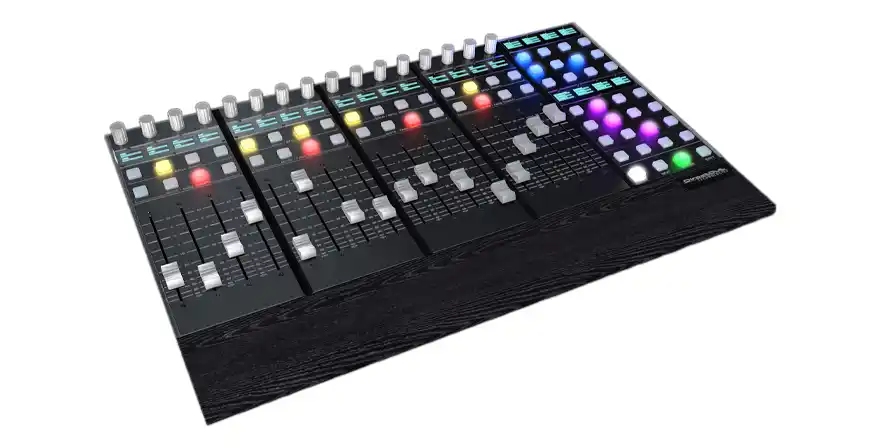

HCONTROL.16
CONTROLLER
Customizable Faders and Buttons via globcon
Connection via USB or Ethernet

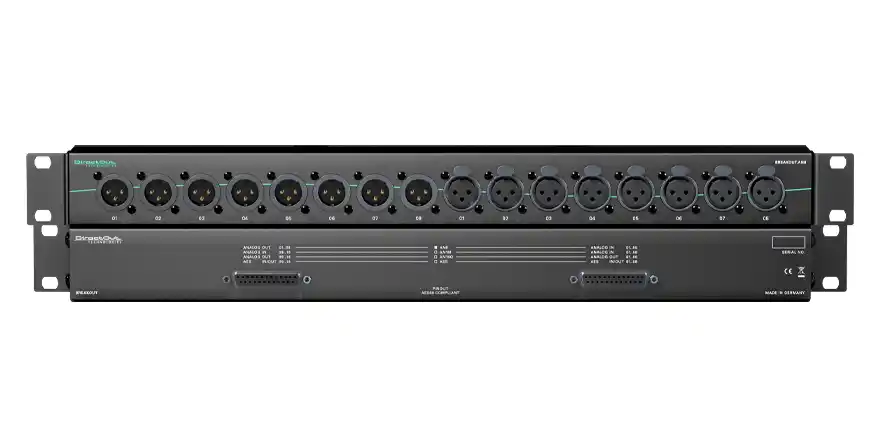

Breakout Series
BREAKOUT BOXES
Analog / AES3
DSUB-25 Connectors
SFP Transceivers - MADI
MADI (AES10)
Optical LC - multi-mode
Optical LC - single-mode
Copper - BNC, 75Ω

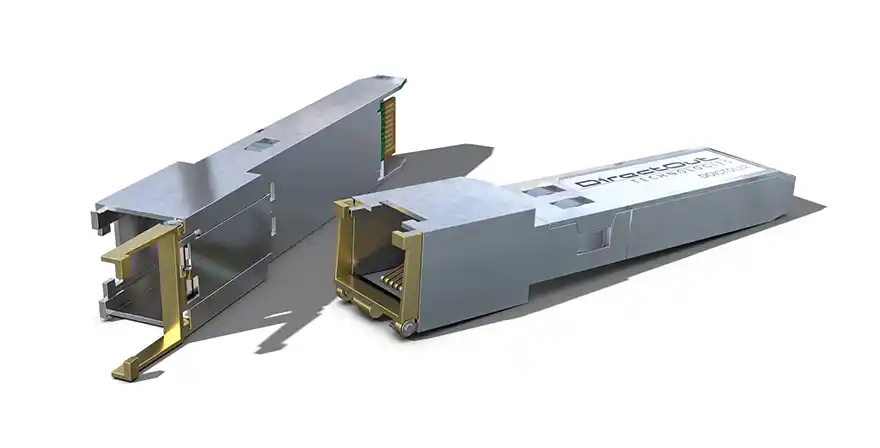

SFP Transceivers - Network
Network
Optical LC - multi-mode
Optical LC - single-mode
Copper - RJ45
