PRODIGY.MC is a modular audio converter, designed to address numerous applications in live sound, broadcast, installation and recording, using a single hardware frame. Fully modular, the hardware can be configured to specific requirements. A granular license model grants a customizable feature set, giving budget savings as well as the flexibility to address changes in the global media environment through future upgrades.

Modular approach, maximum flexibility

I/O includes eight local slots for analog line-level/mic input and AES3 modules. With eight channels per module, PRODIGY.MC provides up to 64 local inputs and outputs. The hardware additionally supports two MADI and one network audio option. MADI slots can be equipped with BNC, SC optical and SFP modules, while the network audio board adds Dante, RAVENNA/AES67 or SoundGrid. The channel capacity sums up to 320 inputs and 324 outputs which are managed with a channel-based routing matrix.

Check out the MODULES available for the PRODIGY Series.

Networked audio and seamless interoperability

The network audio module is designed to accommodate different formats in order to meet present and future requirements in various applications.

The RAVENNA module complies with AES67, ST 2110-30 / -31, and supports all ST 2022-7 classes. As a successful participant of the JT-NM Tested program PRODIGY RAV.IO is listed in the JT-NM Tested Catalog as a module aligning with the SMPTE 2110 standards. With the Dante option, the hardware can be a front-end for audio consoles, or a standalone converter and routing system. Waves Audio’s SoundGrid offers extremely low latency audio transport and allows Waves servers to be connected for plug-in inserts. Virtual soundcards for macOS® and Windows® can directly interface with any DAW for multitrack recording and virtual sound-checking.

The FastSRC™ is a low latency sample rate converter, switchable for the MADI I/Os and the audio network I/O, and ensures seamless exchange when digital sources are not synchronised.

Control is key, multiple access locally and remotely

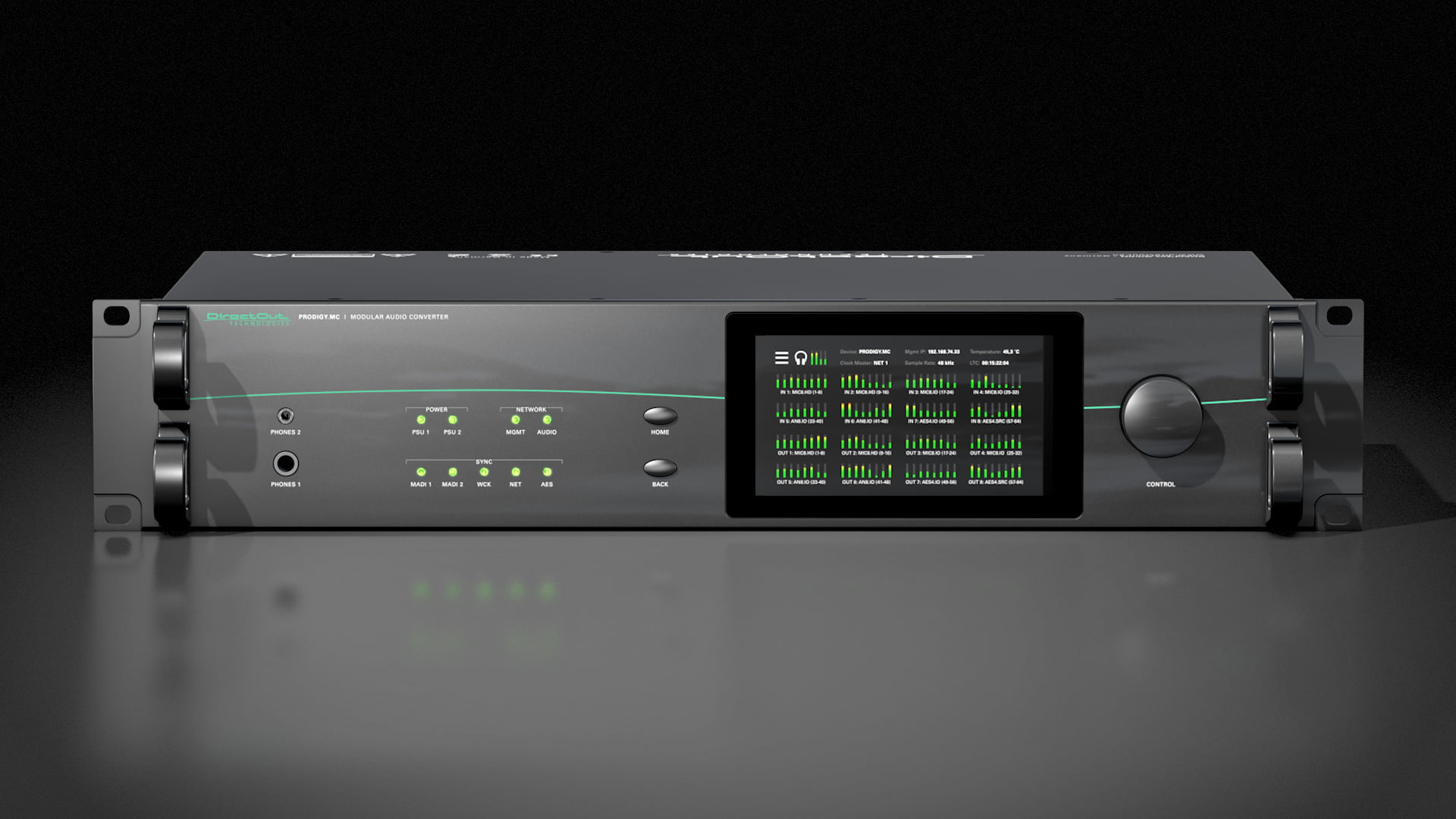

globcon remote control, a browser-based GUI, and a front panel touch display ensure ultimate usability.

globcon software offers full control of multiple pieces of equipment in Mac/PC/Linux-based systems and features a comprehensive snapshot management with selective recall scope-sets. It also supports trigger management which includes OSC and MIDI for control e.g. from a tablet device.

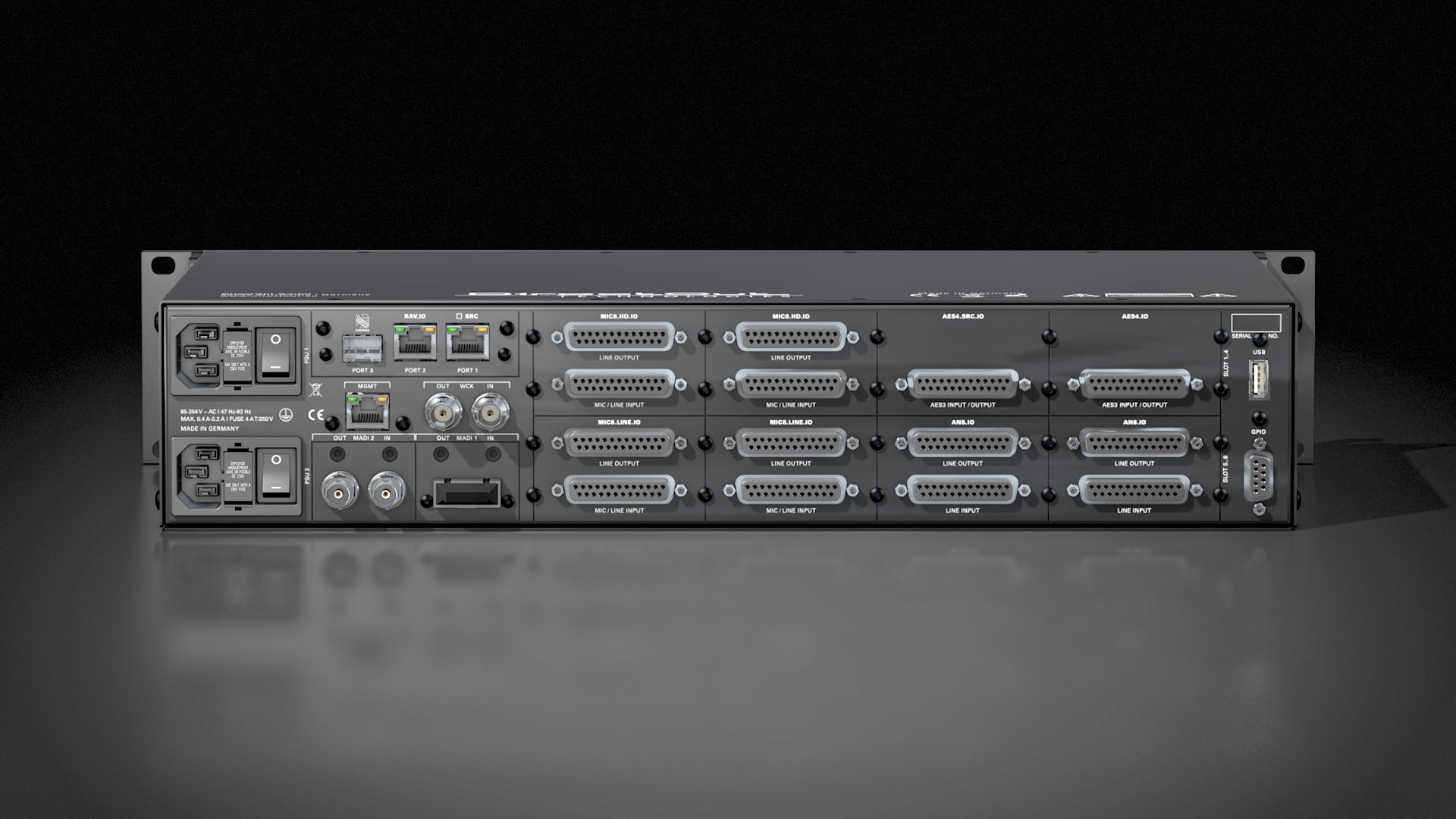

Automated surveillance and red-light control are possible through GPIOs. A USB port on the rear panel offers connection and control of legacy devices via globcon bridge.

PRODIGY Series - Video Tutorials

Safe operation, monitoring

Two headphone outputs provide local monitoring of any I/O. Two phase-redundant power supplies grant seamless operation of the device.
An internal switch on the network module ensures redundancy for the network domain.

While the Dante module supports Dante redundancy, the RAVENNA module offers stream redundancy in accordance with ST 2022-7.

EARS™ (Enhanced Automatic Redundancy Switching) is available for several combinations of inputs. EARS™ is a system to prevent interruption of the output signal. It uses either the proven BLDS™ technology or pilot tone triggering. A logic monitors the condition of the trigger signal on the input. In case of a failure it switches automatically to the backup input.

The BLDS™ Generator can be patched as virtual source in the Matrix and provides monitoring of connections with automatic fail-over switching.

An internal LTC reader displays incoming linear timecode on the touchscreen or via the globcon control software where it can be used to trigger any action.

Converter Modules
AN8.IO 8 ch line input / output, 2 x DSUB-25, balanced
AN8.I 8 ch line input, 1 x DSUB-25, balanced
AN8.O 8 ch line output, 1 x DSUB-25, balanced
MIC8.HD.I 8 ch mic high definition input, 1 x DSUB-25, balanced
MIC8.HD.IO 8 ch mic high definition input / line output, 2 x DSUB-25, balanced
MIC8.LINE.IO 8 ch mic input / line output, 2 x DSUB-25, balanced
MIC8.LINE.I 8 ch mic input, 1 x DSUB-25, balanced
AES4.IO 4 port AES3 input / output, 1 x DSUB-25 (8 audio channels)
AES4.SRC.I 4 port AES3 input with SRC / output, 1 x DSUB-25 (8 audio channels)


MADI Modules
BNC.IO 64 ch MADI, 1x coaxial BNC input, 1x coaxial BNC output, 75 Ω
SC.IO 64 ch MADI, 1x SC-Socket duplex multi-mode (single mode on request)
SFP.IO 64 ch MADI, 1x SFP cage (matching SFP modules available from DirectOut)
with Sample Rate Converter
MADI2.SRC.IO 128 ch MADI, 2x SFP cage (matching SFP modules available from DirectOut)
MADI2.BNC.SRC.IO 128 ch MADI, 2x coaxial BNC input, 2x coaxial BNC output, 75 Ω


Network Modules
RAV.IO Audio Network RAVENNA / AES67 (2x RJ45, 1x SFP)
RAV.SRC.IO Audio Network RAVENNA / AES67 (2x RJ45, 1x SFP)
with Sample Rate Converter
DANTE.IO Audio Network DANTE (2x RJ45, 1x SFP)
DANTE.SRC.IO Audio Network DANTE (2x RJ45, 1x SFP)
with Sample Rate Converter
SG.IO Audio Network SoundGrid (2x RJ45, 1x SFP)
SG.SRC.IO Audio Network SoundGrid (2x RJ45, 1x SFP)
with Sample Rate Converter
MILAN.IO Audio Network AVB/MILAN (2x RJ45, 1x SFP)
MILAN.SRC.IO Audio Network AVB/MILAN (2x RJ45, 1x SFP)
with Sample Rate Converter


Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%)
MADI formats: 48k / 96k Frame, 56 / 64 channel, S/MUX


Additional Interfaces
Headphone Output #1: 1 x 6.3 mm TRS jack, mono/stereo
Output level: max. +18 dBu
SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A)
THD+N @ 0 dBFS: -105 dB @ 600 Ω
Headphone Output #2: 1 x 3.5 mm TRS jack, mono/stereo
Output level: max. +12 dBu
SNR: -115 dB RMS (20 Hz - 20 kHz) / -118 dB(A)
THD+N @ 0 dBFS: -105 dB @ 600 Ω
Word Clock I/O: 1 x coaxial BNC (75 Ω termination switchable), AES11 (DARS also supported)
GPIO 2 x GPI (MOSFET switch)
2 x GPO (MOSFET switch)
USB USB 2.0 for legacy control of ANDIAMO devices


Remote Software: globcon software control
integrated web server with UI (HTML, JavaScript)
Control Protocols: JSON API, SNMP*, OSC, Ember+
Remote Network: 1x RJ45 Gigabit Ethernet


Power supply: 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phaseredundant
Power Consumption: 20 to 110 W, module dependent
Display: 5.0” Backlight LED LCD
IPS Transmissive
Resolution: 480 x 854 px
Local Control: 1 x Encoder knob with push functionality
2 x Push-Buttons
Dimensions: Width 19'' (483 mm)
Height 2 RU (89 mm)
Depth 10'' (254 mm)
Weight: about 10 kg



No liability for misprints and technical changes assumed.
