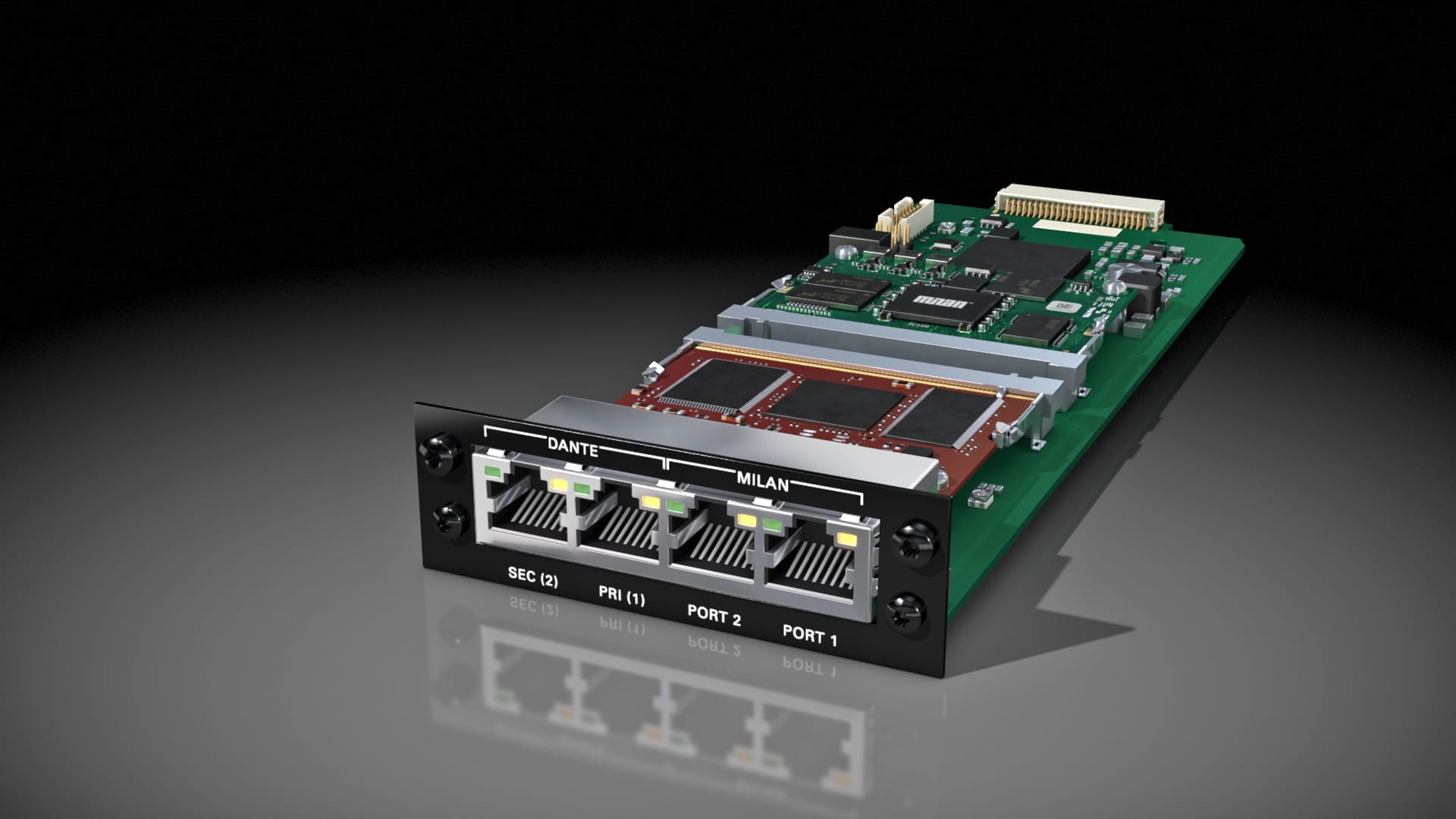

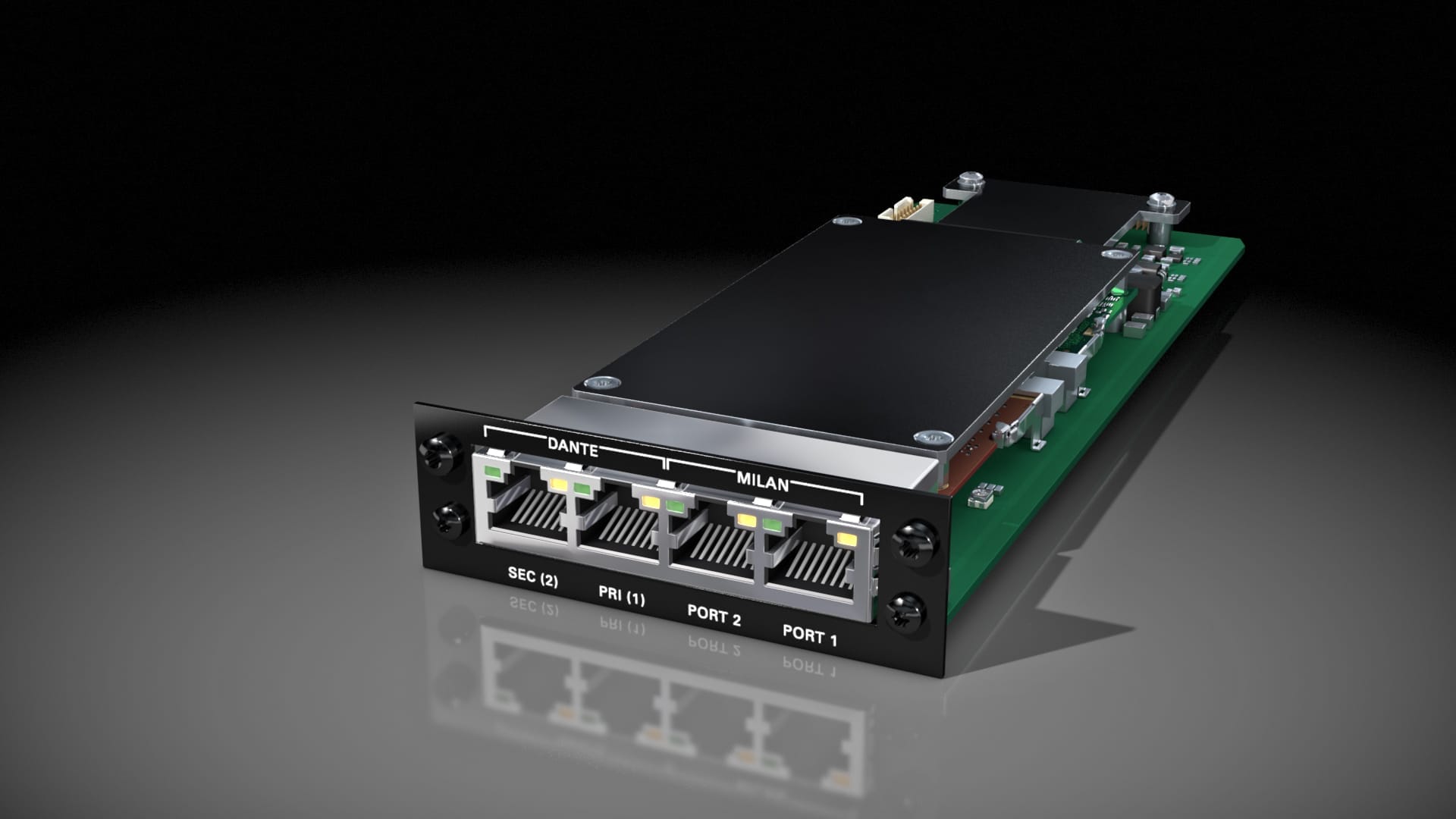

DANTE.MILAN.SRC.IO is a dual network audio module for the PRODIGY Series and MAVEN.A to interface with 64 channels each of Dante and MILAN* streams.

One module, two audio engines
Hosting two audio network boards the module offers 2 x 64 of two different audio protocols - Dante and MILAN*. This allows to interface with two audio protocols in a single A Slot of MAVEN.A or PRODIGY.MC. With the two A Slots of a PRODIGY.MP the coverage can be extended by a third or even fourth audio protocol.

Sample Rate Conversion
Individual HD SRC for bi-directional sample rate conversion is on board as a standard.
The two audio network boards can be operated at different sample rates.
Dual network modules ensure a seamless connection across clock boundaries and different audio protocols on a single module.

Stream Redundancy
There are 2 x 2 independent network interfaces to connect each protocol via a second stream (primary/secondary or Port 1 / Port 2).



The amount of audio channels per protocol is reduced at higher sample rates - 32 channels @ 2 FS or 16 channels @ 4 FS.

Dante is an audio networking technology from Audinate.

Milan is an audio networking technology created and maintained by Pro Audio market leaders in the Avnu Alliance®. Milan™ is a standards-based deterministic network protocol for real time media.

*applied for certification

Key features Dante

  • 32 streams
  • 64 channels (1 FS), 32 channels (2 FS), 16 channels (4 FS)
  • Sample rate 44.1 kHz up to 192 kHz
  • Sample rate conversion (HD SRC on board)
  • Stream redundancy‚ primary/secondary
  • Switch configurable (Primary / Secondary)
  • Ethernet layer 3 ('Audio over IP')
  • AES67 Mode available (limited to 48kHz)
  • ST-2110-30 via Dante Domain Manager (limited to 48kHz)
  • 2 x RJ45 gigabit ethernet
  • Remote control via Dante Controller, browser and globcon, DDM ready



Key features MILAN

  • 64 channels (1 FS), 32 channels (2 FS), 16 channels (4 FS)
  • Sample rate 44.1 kHz up to 192 kHz
  • Sample rate conversion (HD SRC on board)
  • Switch configurable (Internal AVB switch)
  • Ethernet layer 2
  • 2 x RJ45 gigabit ethernet
  • Remote control via ATDECC controller (i.e. Hive) and browser
