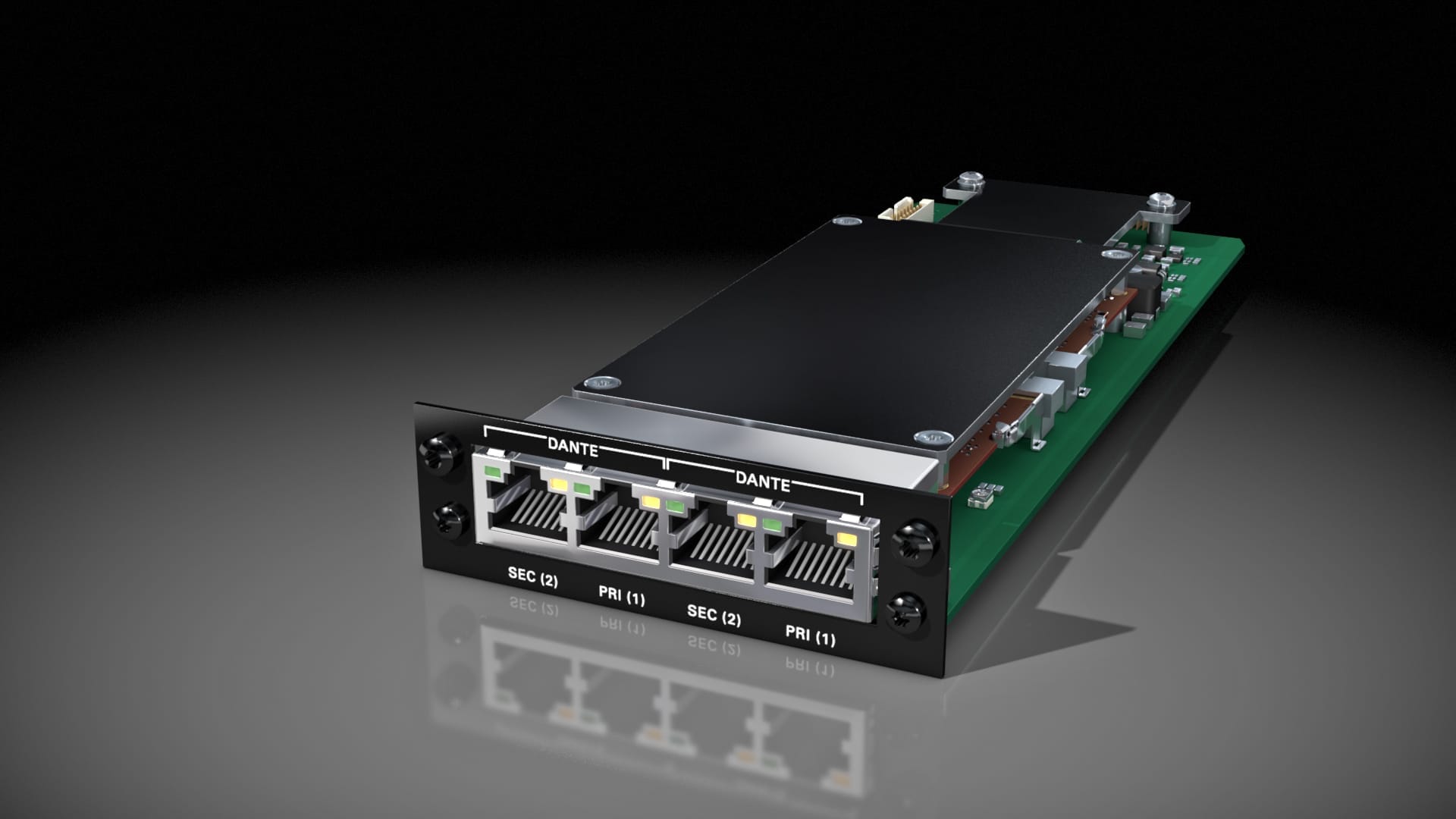

DANTE.DANTE.SRC.IO is a dual network audio module for the PRODIGY Series and MAVEN.A to interface with 2 x 64 channels of Dante streams.

One module, two audio engines

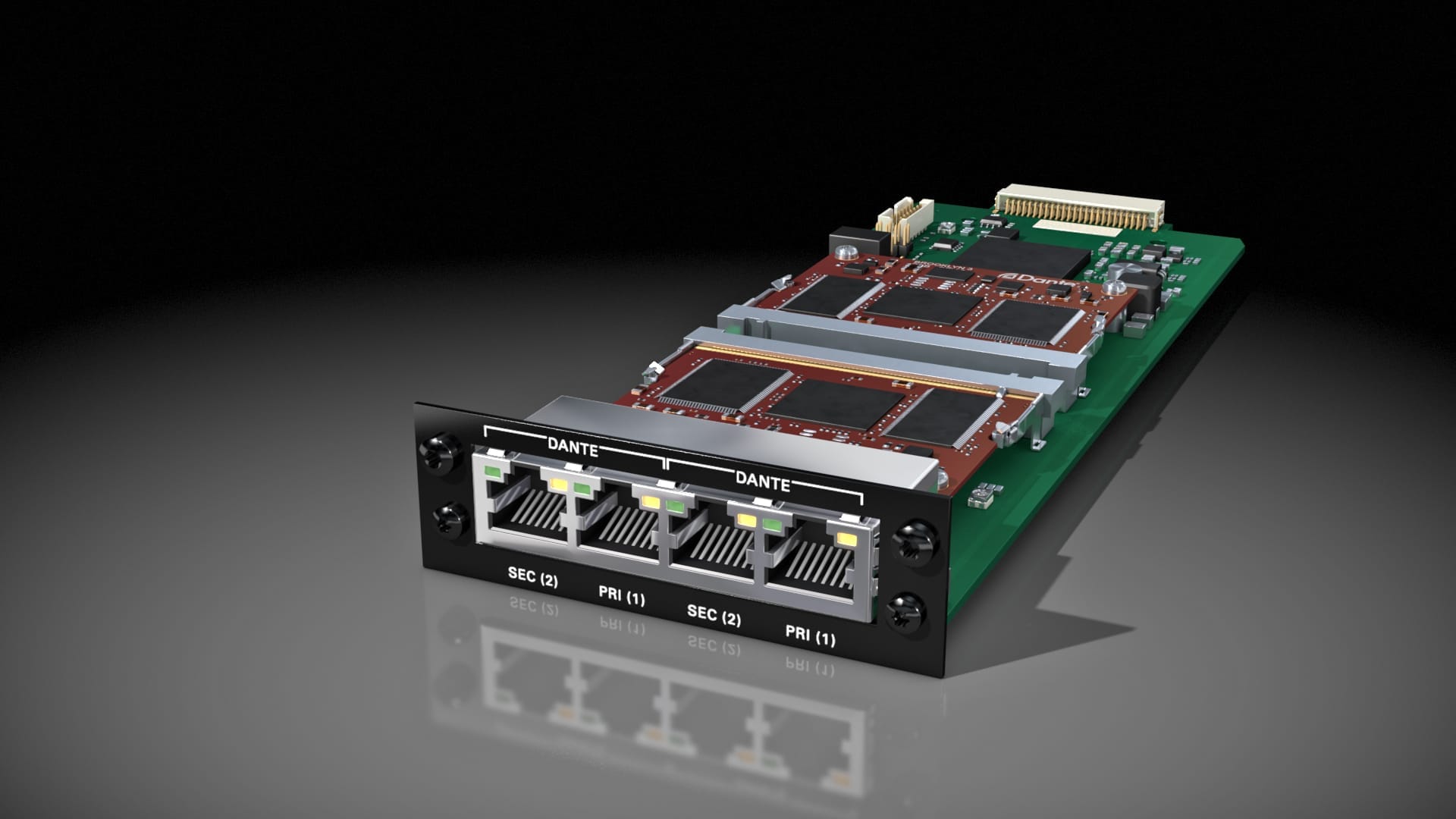

Hosting two Brooklyn 3 boards, the module offers 2 x 64 channels of Dante input and output, resulting in 128 channels on a single module in the A Slot format. It can also be connected to two different Dante environments with 64 channels each.

Sample Rate Conversion
Individual HD SRC for bi-directional sample rate conversion is on board as a standard.
The two audio network boards can be operated at different sample rates.
Dual network modules ensure a seamless connection across clock boundaries and different audio protocols on a single module.

Stream Redundancy
There are 2 x 2 independent network interfaces to connect each protocol via a second stream (primary/secondary).



The amount of audio channels is reduced at higher sample rates - 2 x 32 channels @ 2 FS or 2 x 16 channels @ 4 FS.

Dante is an audio networking technology from Audinate.
