ANDIAMO.AES is part of the ANDIAMO family of powerful, high-end MADI converters.
ANDIAMO.AES is a bi-directional, 64-channel AES3/MADI interface with a built-in routing matrix. It is equipped with 2 MADI Ports and 32 AES3 I/Os and can simultaneously convert 64 channels of audio from AES3 to MADI and vice-versa.
The device is housed in a compact 2U 19” casing for efficient use of rack space.
ANDIAMO.AES is also available in an SRC version with sample rate converters on the first 16 AES3 inputs switchable in groups of eight channels to handle asynchronous signals.
The device may be operated locally or remotely via the ANDIAMO Remote software. Supported remote methods are USB, D.O.NET, ‘MIDI over MADI’ and ‘Serial over MADI’.

ANDIAMO Remote (Windows® / OS X®) offers access to the following features (and many more):

  • Matrix Mode which offers free signal routing on a per-channel basis.
  • 4 FS support – the device supports sample rates from 44.1 kHz up to 192 kHz to meet the highest sonic demands
  • Level control – output gain/level trim for individual channels

The settings and the routing matrix are stored inside the device.

Port redundancy

ANDIAMO.AES is equipped with two MADI ports as standard, offering seamless port redundancy and switchover. Both MADI ports are always active and carry the same MADI data, except when the Extended Routing feature is deployed.

Extended routing

The Extended Routing feature enables both MADI I/Os to be used independently to:

  • make full use of all conversion channels at higher sample rates (96 kHz)
  • double the range of available MADI input channels
  • create two individual MADI feeds



Bit transparency

Three different modes offer individual handling of channel status data via the AES and MADI ports. User bit transparency provides pass-through of proprietary control data or access to MADI user bits at the AES outputs for further analysis. Takeover of the complete channel status (CUVP bits) is also possible.

Quick overview

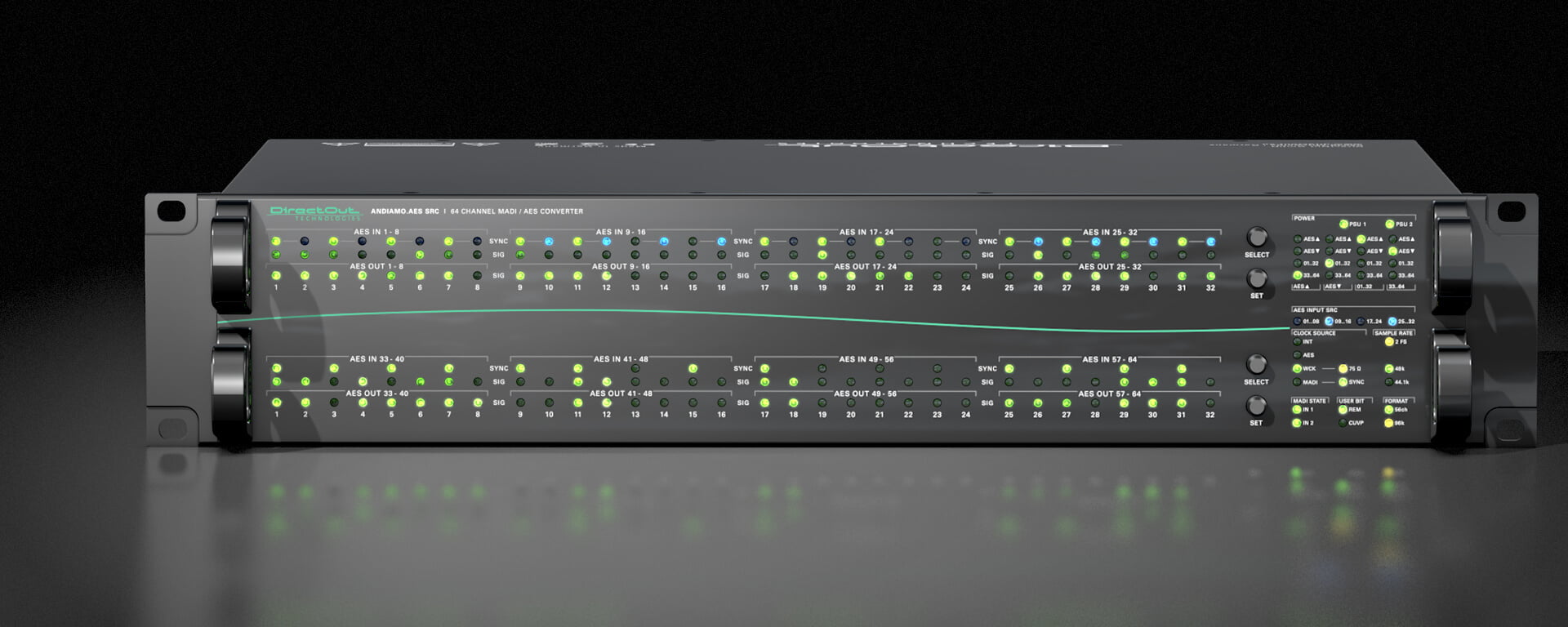

The front panel provides level control and status LEDs for real-time monitoring of signal condition for all input and output channels.

Clocking

Selectable clock sources are word clock, AES input, MADI input or the internal clock. The current system clock is provided at the word clock output at any time.

Safe operation

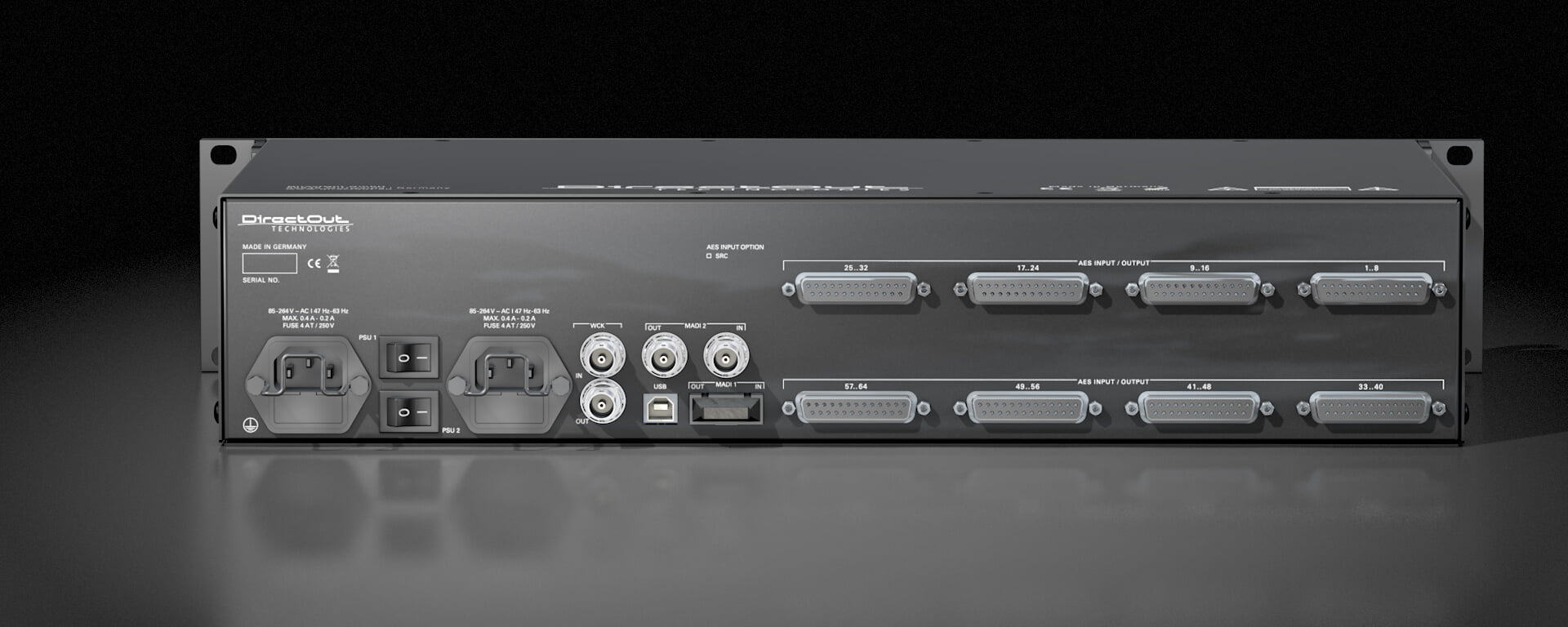

Thanks to two phase-redundant power supplies with separate IEC inlets and AC power switches on the rear panel the device offers the highest reliability.

Interfaces
MADI ports (I/O): 2 x SC-Socket multi-mode
or
1 x SC-Socket multi-mode & 1 x coaxial BNC, 75 Ω
AES3 ports (I/O): 8 x DSUB-25 (32 x AES3), AES59 compliant



Digital
Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz (+/- 12,5%)
MADI formats: 48k / 96k Frame, 56 / 64 channel, S/MUX
Sample rate conversion: 16 x stereo @ AES inputs (switchable)*
THD+N: 140 dB
Frequency response ripple: < 0.025 dB
Latency: <140 samples



Sync
Word clock (I): 1 x coaxial BNC (75 Ω termination switchable), AES11 (DARS also supported)
Word clock (O): 1 x coaxial BNC



Communication
Remote Software: ANDIAMO REMOTE (Windows® & OS X®), globcon
Remote Methods: USB, Serial over MADI, MIDI over MADI, DONet



Global
Service: USB 2.0 for firmware updates (Windows®) and remote control (Windows® & OS X®)
Power supply: 2 x 84 V to 264 V AC / 47 Hz to 63 Hz / safety class 1, phaseredundant
Power Consumption: 40 W
Dimensions: Width 19'' (483 mm)
Height 2 RU (89 mm)
Depth 10'' (254 mm)
Weight: about 4 kg
USB Serial driver: Windows® & OS X®



Device variants
Single-mode: MADI port: SC-Socket single-mode



Notes
* ANDIAMO.AES SRC only
